Cantex 5133664 Conduit Outlet Body, PVC, Lb

Product Description

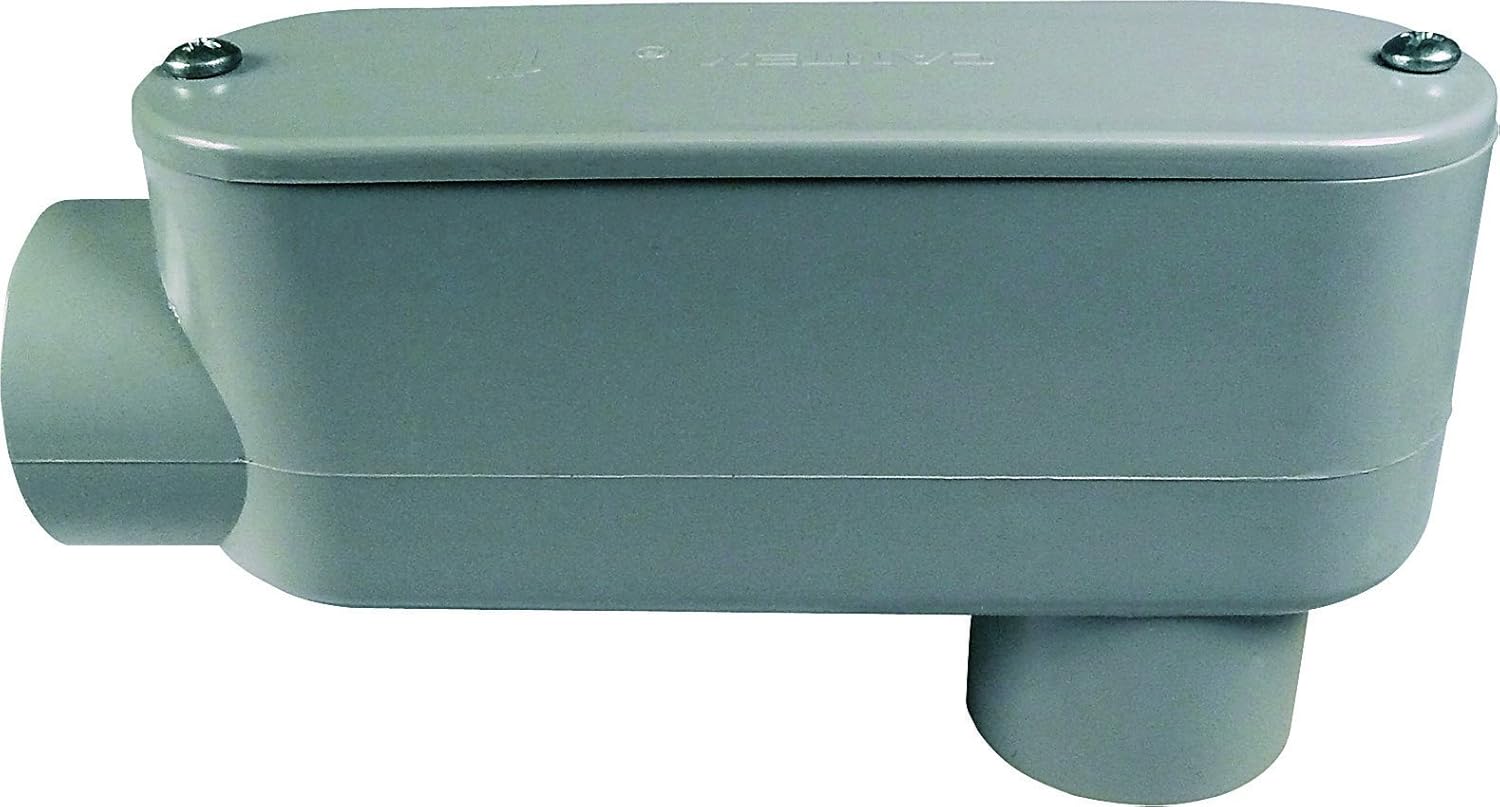

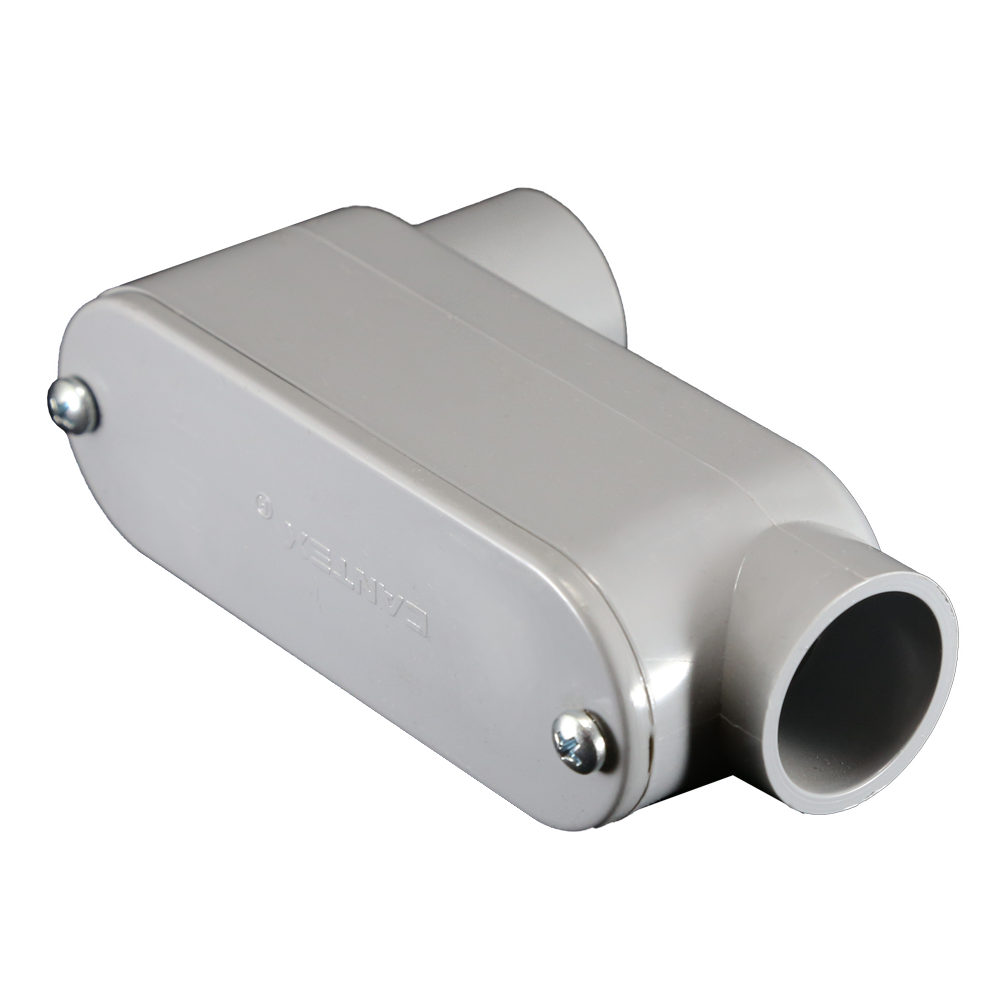

The Cantex 5133664 conduit outlet body is made of PVC and functions as a type LB. This conduit body allows for pull, splice, and tap access for conductors in a conduit system, enabling a change in direction. It is designed to include a lid, gasket, and screws for easy installation.

• Provides pull, splice, and tap access for conductors
• Durable non-conductive PVC will not rust or corrode
• Includes lid, gasket, and screws

Product Highlights

This conduit outlet body is suitable for use with Schedule 40 and Schedule 80 conduit, ensuring compatibility and versatility in various installations.

Product Information

Standard Information

• Material: PVC
• Type: Type LB Rounded Corner

Technical Specifications

• Part Number: 5133664
• Capacity: 6.5 cu-in
• Hub Size: 3/4 in
• Trade Size: 3/4 inch
• Standards: UL Listed, CSA Certified
• Number of Hubs: 2
• Cover Type: Screw-On
• Conductor Capacity: 6 AWG
• Overall Width: 1.5 in
• Overall Length: 4.9375 in
• Gasket Included: Yes
• Connection Orientation: 90 Degrees
• Country of Origin: United States
• Application: For use with SCH40 and SCH80 conduit
