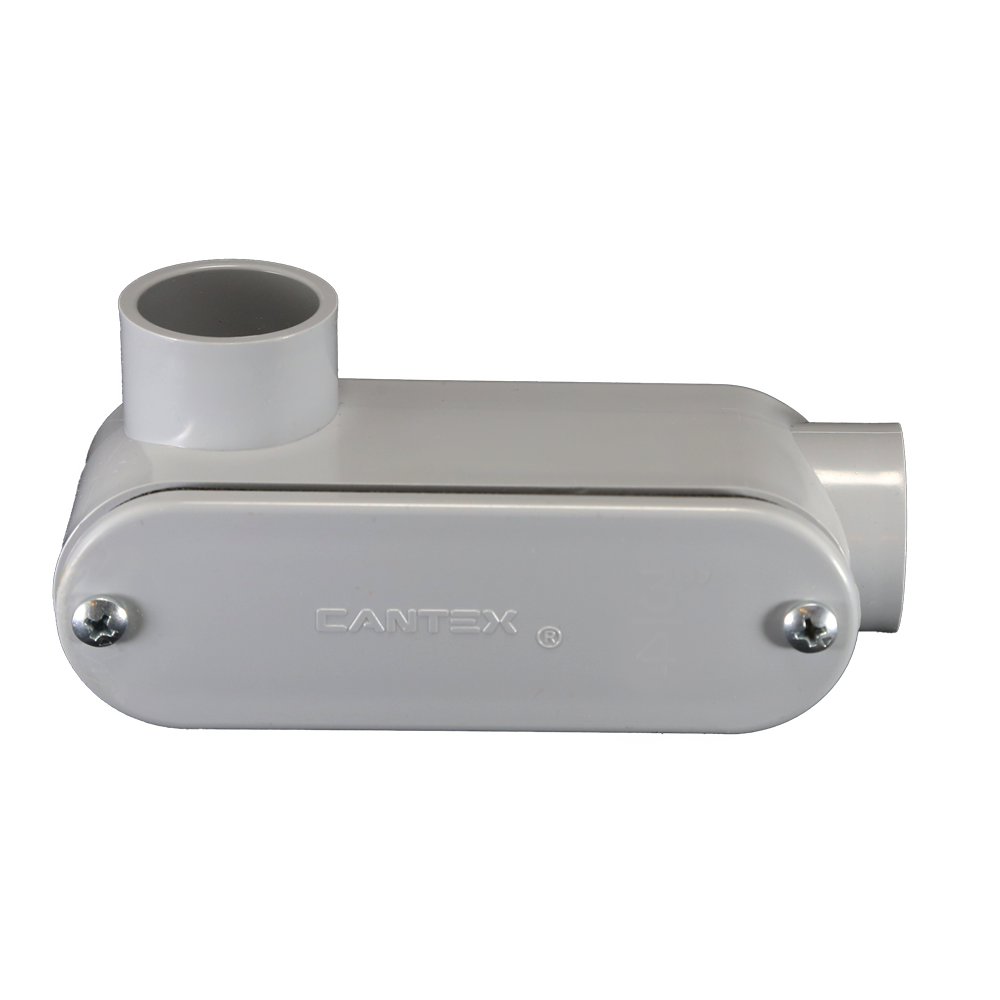

Cantex 5133662 Conduit Body LL 1 Inch Replacement MPN

Product Description

The Cantex conduit body, model 5133662, is designed for use with schedule 40 and 80 PVC conduit systems. This Type LL non-metallic conduit body provides a threadless connection for easy fittings and features a flat back design for increased wiring capacity within its 11.8 cubic-inch space. The body includes two hubs positioned at a ninety-degree angle, enabling a change in direction for conduit runs while allowing left-side access.

• Constructed from durable non-conductive PVC material.
• Includes a screw-on cover and gasket for secure wiring.
• Suitable for both residential and commercial electrical installations.

Product Highlights

Type LL conduit body that accommodates simple wire access and changes in direction.

Product Information

Standard Information

• Trade Size: 1 Inch
• Type: Non-Metallic

Technical Specifications

• Number of Hubs: 2
• Hub Size: 1 Inch
• Dimensions: 6 inches x 2 inches x 1.75 inches
• Material: PVC
• Standards/Approvals: UL E98429 Listed
• Cubic Capacity: 11.8
• Hub Placement: 90 Degree
• Conductor Capacity: 6 AWG or Smaller
