Product Description

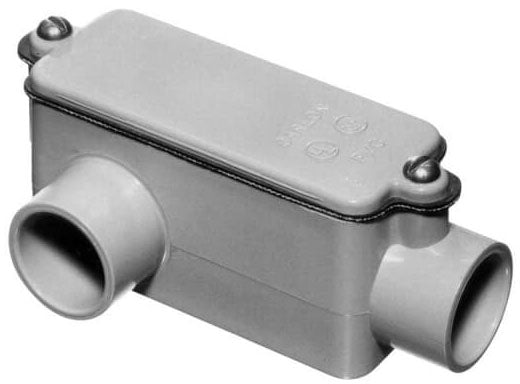

The Cantex conduit body has the MPN 5133653. It is a Type LR conduit body made from PVC. This model is designed to facilitate electrical wiring. It is used for making turns in conduit runs. The conduit body has two hubs and provides access for splicing, tapping, and pulling wires.
- Type LR configuration for directional changes.
- Constructed from durable PVC material.
- Meets UL and CSA standards.
Product Highlights
The Cantex conduit body is essential for electrical installations, providing accessibility and protection for conductors. It supports a change in direction and helps maintain a secure connection in conduit systems.
Product Information
Standard Information
-
Manufacturer Name: Cantex
-
UPC: 088700010048
Technical Specifications
-
Application: Used with schedule 40 and 80 conduit
-
Color: Gray
-
Dimensions: 7.188 inches L x 2.438 inches W x 2.438 inches H
-
Hub Size: 1-1/4 inches
-
Includes: Lid, Gasket, Screws
-
Material: PVC
-
Number of Hubs: 2
-
Standards/Approvals: ARRA Compliant, RoHS Compliant, CSA Certified, UL File No. E98429
