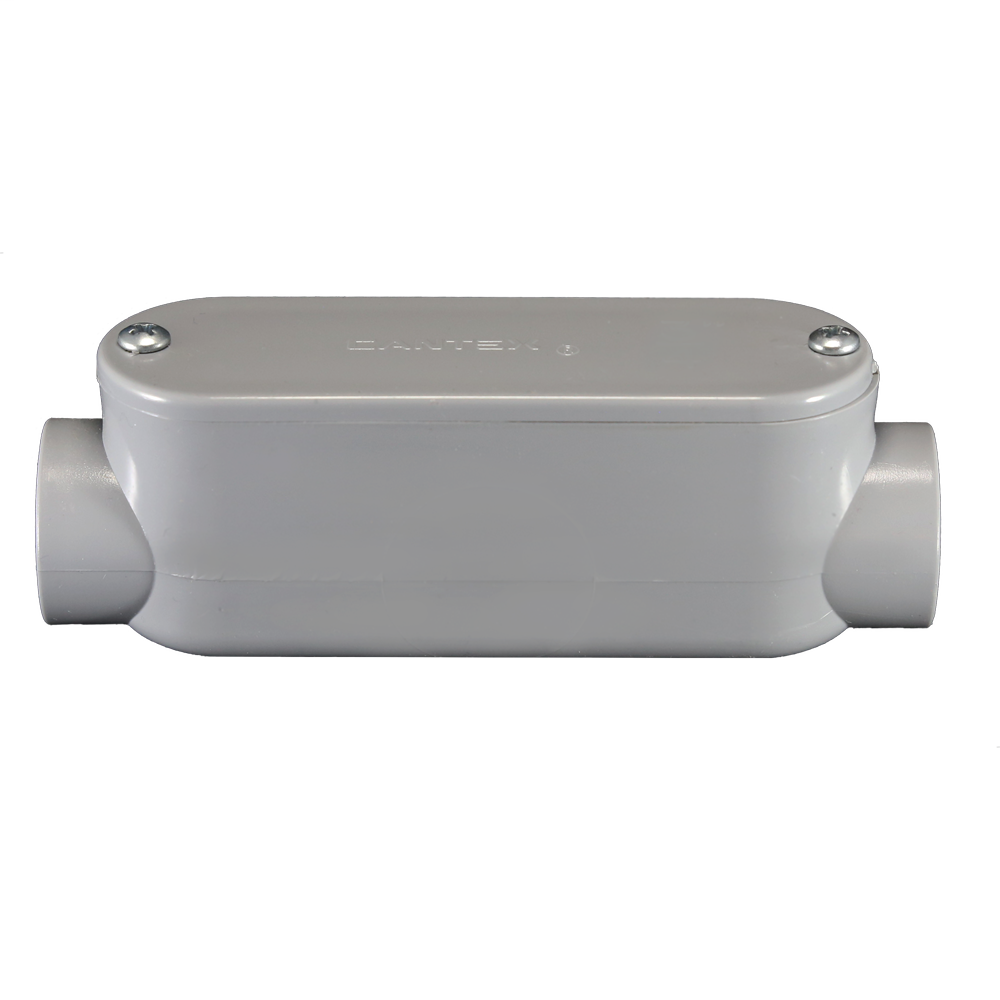

Cantex 5133101 Conduit Body Type C 1/2 Inch Pvc

Product Description

The CANTEX 5133101 is a 1/2 inch Type C PVC conduit body designed to provide pull, splice, and tap access for conductors within a conduit system. Constructed from electrical PVC (EPVC), this conduit body offers corrosion resistance well suited for exposed or embedded installations. The Type C configuration features openings at both ends and one at the center of the back, allowing straight-through conductor access with a removable cover plate for easy wire pulling and maintenance. It is installed by licensed electricians during rough-in and finish electrical work on residential and light commercial projects.

This conduit body is used in 1/2 inch conduit runs where installers need an accessible junction or pull point. Typical applications include indoor and outdoor wiring systems, exposed conduit runs in commercial buildings, and underground or concrete-encased raceway systems where PVC conduit is specified. The EPVC material makes it appropriate for wet locations and corrosive environments where metallic fittings are not preferred.

Key Features

• Type C configuration provides straight-through pull, splice, and tap access
• Electrical PVC (EPVC) construction resists corrosion and moisture
• Sized for 1/2 inch conduit systems
• Removable cover plate allows conductor access without disturbing the conduit run
• Suitable for wet, damp, and corrosive location installations

Compatibility

Designed as an OEM-style replacement and standard fitting for 1/2 inch PVC electrical conduit systems in residential and commercial raceway installations.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits before opening any conduit body for splicing or conductor work. Solvent-weld the conduit body to compatible PVC conduit using approved PVC conduit cement, following manufacturer cure time guidelines before pulling wire. Do not exceed the conduit fill capacity defined by the NEC for the conductor types and sizes used in the run.

Technical Specifications

• Conduit Body Type: Type C
• Trade Size: 1/2 inch
• Material: Electrical PVC (EPVC)
• UPC: 088700567580

Standard Information

• Brand: CANTEX
• Manufacturer Part Number: 5133101
