Canplas 3925A02LOS Endura Lo-Profile 25 GPM

Product Description

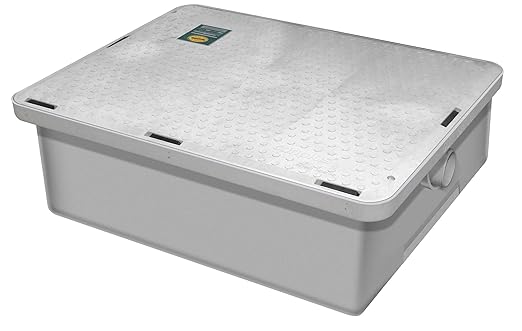

The CANPLAS 3925A02LOS Endura Lo-Profile is a compact polypropylene hydromechanical grease interceptor designed for interception of fats, oils, and grease in food preparation wastewater. Constructed from high-performance engineered thermoplastic, it will not corrode, chip, or peel. Features an EZ-Open cover latching system for fastener-free access and a 3" No-Hub connection compatible with DWV piping.

• 11" unit height designed for applications with space constraints
• Recessed silicone seal prevents foul odors from escaping
• Maximum service temperature 220° F/104° C

Product Highlights

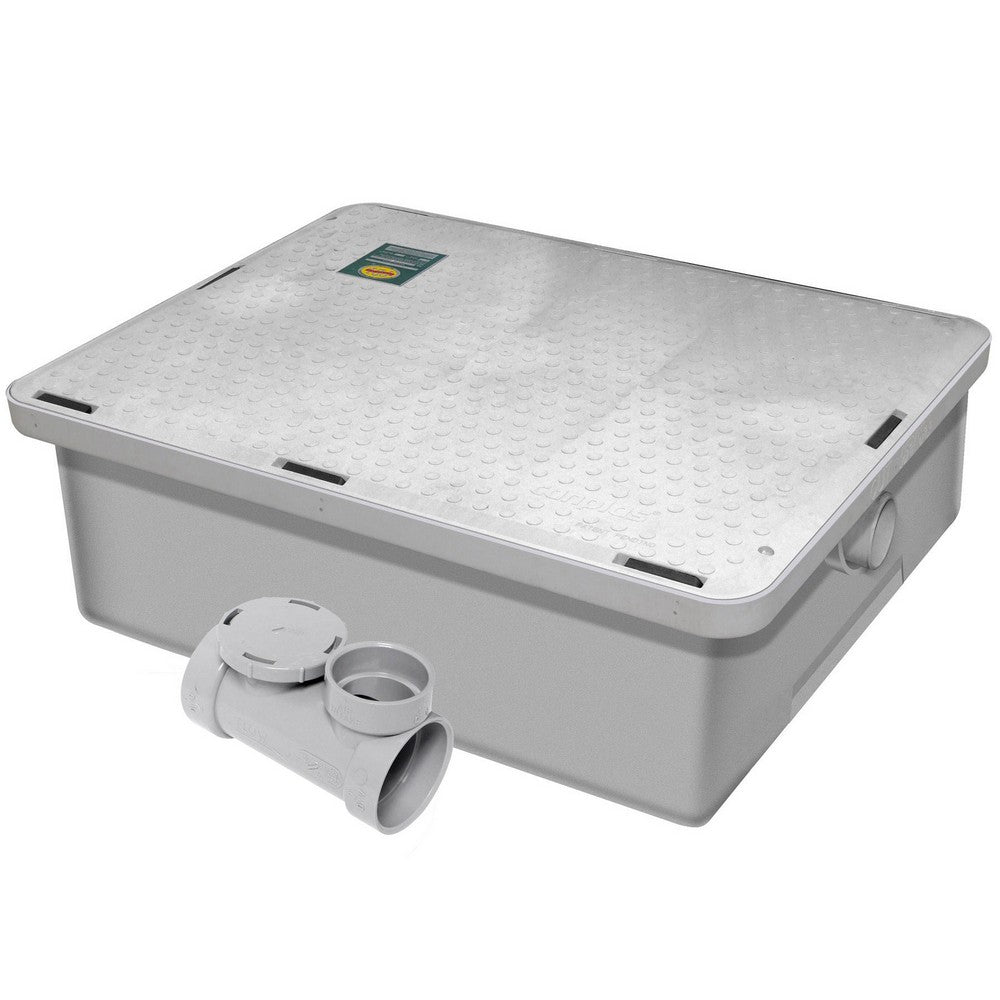

This lightweight and durable grease interceptor offers ease of handling, installation, and product longevity. It has a compact footprint and is supplied with an accessible flow control device.

Product Information

Standard Information

• Brand: CANPLAS
• Manufacturer Part Number: 3925A02LOS
• Country of Origin: United Kingdom

Technical Specifications

• US Gallons Per Minute GPM (L/Sec): 25 (1.6)
• Grease Capacity Actual (ASME A112.14.3): 62.59 lb (28.39 kg)
• Average Efficiency% (Ibs) (ASME A112.14.3): 96.3%
• Operating Temperature Capabilities: 220°F (104°C)
• Cover Load Rating – CSA B481.0: L
• Unit Weight (Empty): 34.35 Ib (15.58 kg)
• Liquid Capacity: 18.9 gal (71.54 L)
• Connection size (mechanical joint only): 2"
• Min. Cover Load Rating: PEDESTRIAN RATED 300lb (135 kg)
• Item model number: 3925A02LO
• Brand: Canplas
• MPN: 3925A02LO
• Country of Origin: United Kingdom
• Flow Rate: 25 GPM
• Product: Grease Traps
• Product Type: Cleaning & Janitorial
• Series: Endura®
• Applicable Standard: ASME 112.14.3, CSA, PDI-G101, UPC
• Application: Plumbing
• Body Height: 10.94 Inch
• Body Material: Thermoplastic
• Body Width: 23.5 Inch
• Grease Capacity: 50 Pound
• Inclusions/Features: Flow Control Device
• Inlet to Top Height: 3.95 Inch
• Outlet to Bottom Height: 6.99 Inch
• Overall Length: 31.06 Inch
• Pipe Size: 2 Inch
• Type: Grease
• Water Capacity: 1.6 Liter/Second
