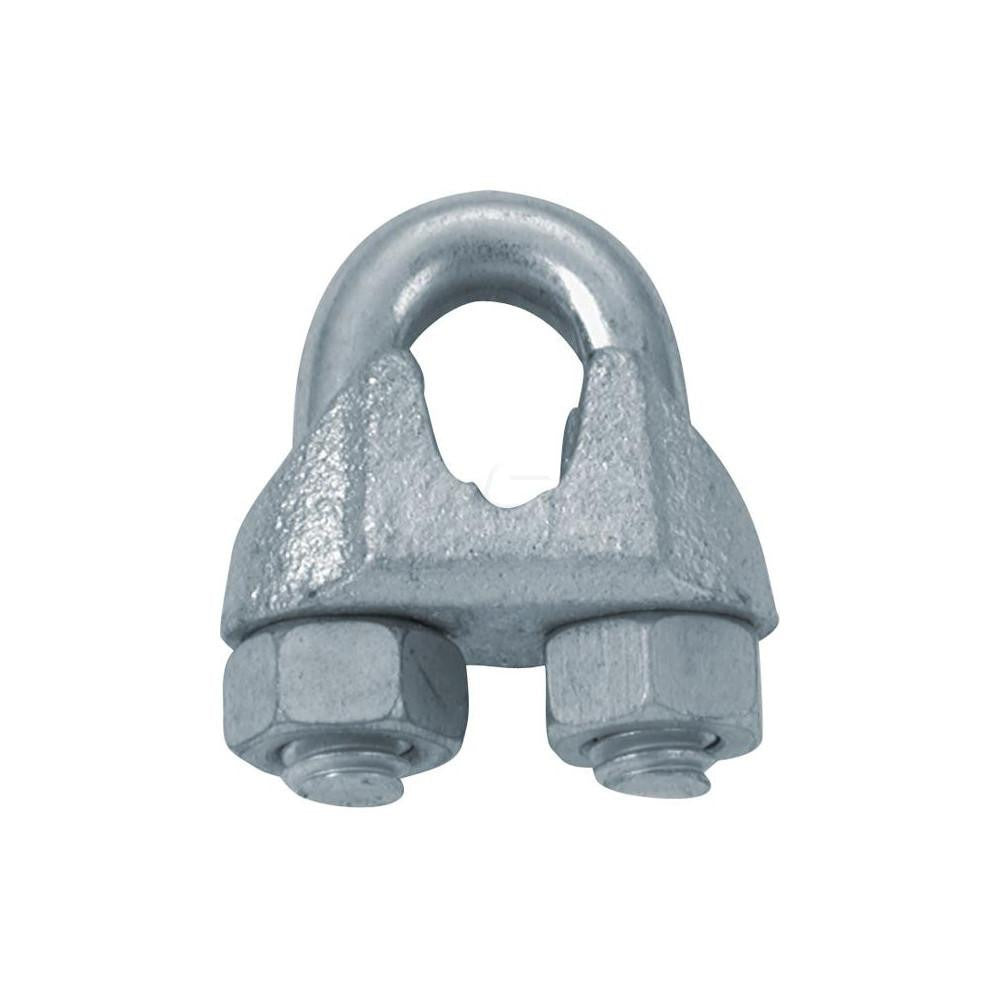

Campbell T7670409 Wire Rope Clip 1/16 Inch Steel

Product Description

The CAMPBELL T7670409 is a steel wire rope clip designed to secure loop terminations and thimble assemblies on 1/16-inch diameter wire rope. The clip uses a clevis attachment style and functions as a rope clamp, holding the dead end of a wire rope loop firmly against the standing line. It ships as a single clip with a minimum order quantity of 10 units. The electrogalvanized finish provides basic corrosion resistance for general-purpose indoor and light outdoor use. Installers in rigging, cable management, and light lifting applications rely on this clip type to form safe, reliable terminations on small-diameter wire rope assemblies.

This clip is suited for use on 1/16-inch wire rope in light-duty rigging, display hanging, safety cables, and cable management systems. At least 2 clips are required per termination per manufacturer guidance. If the wire rope being terminated has a coated or jacketed outer layer, the coating must be removed from the assembly area before installing the clip to ensure proper grip and clamping performance. This part is sold individually but ordered in multiples of 10.

Key Features

• Designed for 1/16-inch diameter wire rope terminations
• Electrogalvanized steel construction for corrosion resistance
• Clevis attachment type for secure rope clamping
• Minimum of 2 clips required per loop termination
• Compact profile: 0.75 inches long, 0.63 inches wide, 0.38 inches tall
• Remove coating from assembly area when used on coated or jacketed cable

Compatibility

Designed as a standard thimble clip replacement for 1/16-inch diameter wire rope assemblies in general rigging and cable management applications.

Installation Notes

Installation should be performed by a qualified rigger or technician familiar with wire rope termination practices. Ensure all tension is removed from the rope assembly before installing or adjusting clips. Apply the correct number of clips per termination — a minimum of 2 is required for this rope diameter. Torque fasteners per applicable rigging standards and inspect the assembly after initial loading.
