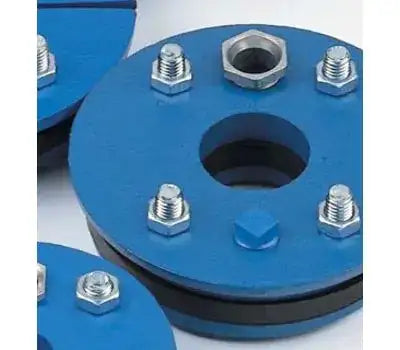

Campbell SUB6X1G 6 Inch x 1 Inch Cast Iron Submersible Split Well Seal

Product Description

The Campbell SUB6X1G 6 inch x 1 inch Cast Iron Submersible Split Well Seal is suitable for submersible installations. This well seal fits on the top of a six inch well casing and works to prevent outside elements from entering. It is designed for simple installation and maintenance without needing to disconnect existing plumbing or electrical components.

• Constructed with a cast iron upper and lower support plate for durability and corrosion resistance.
• Includes a rubber gasket that forms a tight seal around the pipe and cable, keeping debris, pests, and surface water out of the well.
• The split design allows for easy retrofitting and quick servicing, reducing downtime.

Product Highlights

This well seal is essential for contractors working with submersible pumps in municipal, agricultural, or residential settings where maintaining a sanitary seal is crucial.

Product Information

Standard Information

• Item Type: Pump Parts
• Brand: Campbell

Technical Specifications

• MPN: SUB6X1G
• Material: Cast Iron
• Size: 6 inch x 1 inch (1 inch drop pipe)
• Cable Hole: Untapped 1-3/8 inches for 1 inch pipe and 1-1/8 inches for 3/4 inch pipe
• Vent Tapping: 1/2 inch vent tapping
