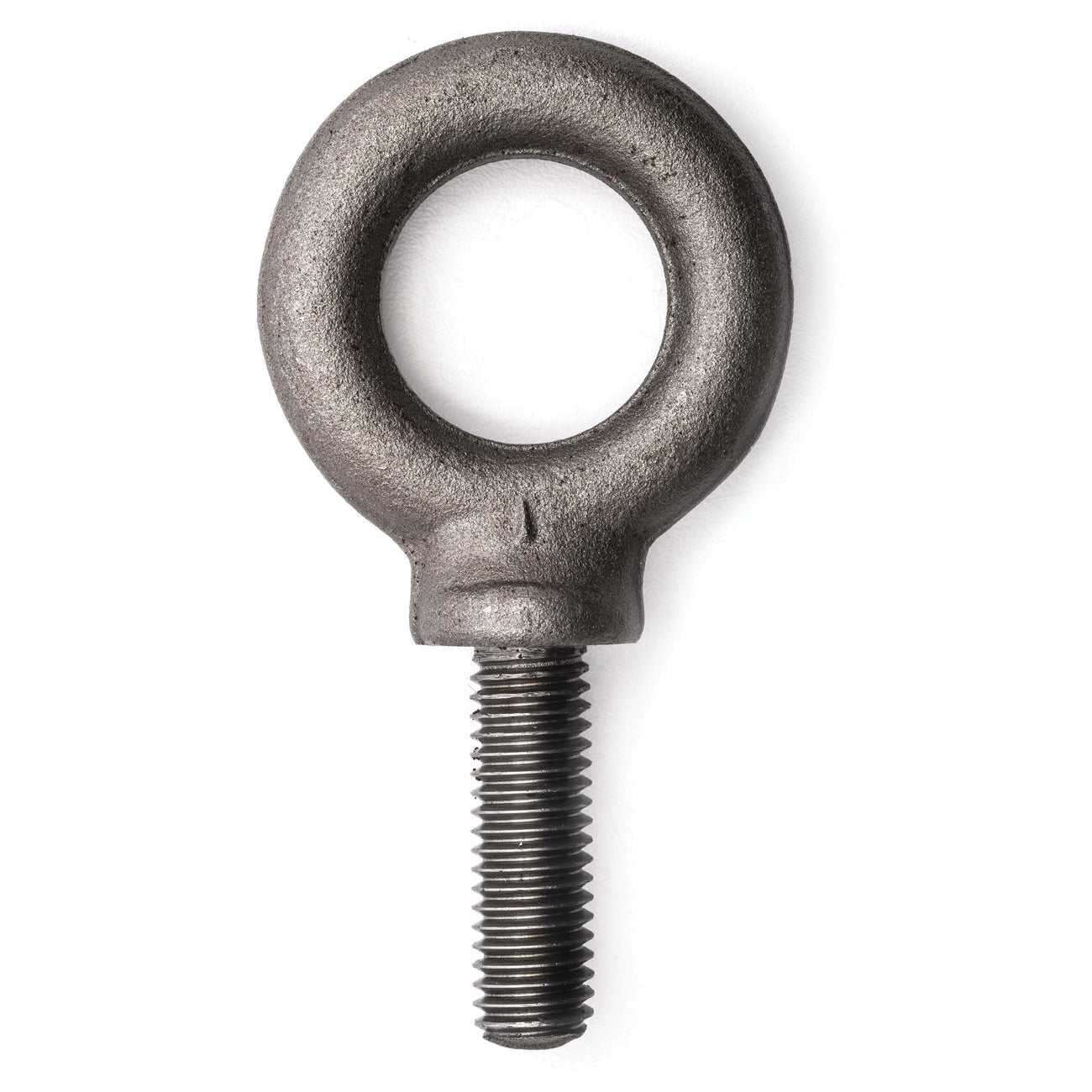

Campbell CAMPB-7100228 Fixed Shoulder Eye Bolt, 1-8, 2-1/2 in L Shank, Drop Forged Carbon Steel, Self-Colored

Product Description

The Campbell brand has a long history, established in 1834 with roots in manufacturing harnesses for horses. The company has expanded its line to include various fasteners, including the CAMPB-7100228 Fixed Shoulder Eye Bolt. This eye bolt features a measurement system in imperial units with a diameter of one-eighth inch and a shank length of two and a half inches. Made from drop forged carbon steel, this eye bolt has a self-colored finish, ensuring durability and strength.

• Working load limit of 9500 pounds.
• Fully threaded shank.
• Designed for vertical pull; angular lifts should be avoided.

Product Highlights

The CAMPB-7100228 Fixed Shoulder Eye Bolt is engineered for safety and efficiency in lifting applications.

Product Information

Standard Information

• Brand: Campbell
• MPN: CAMPB-7100228

Technical Specifications

• Inside Eye Diameter: 1-13/16 in
• Material Specification: C-1030
• Outside Eye Diameter: 3-9/16 in
• Overall Length: 6-5/8 in
• Shank Type: Fully Threaded
• Thread Length: 2-1/2 in
• Thread Type: UNC
• Working Load: 9500 lb
• Measurement System: Imperial
• Diameter - Thread Size: 1-8
• Shank Length: 2-1/2 in
• Material: Drop Forged Carbon Steel
• Type: Fixed Shoulder
• Finish: Self-Colored
