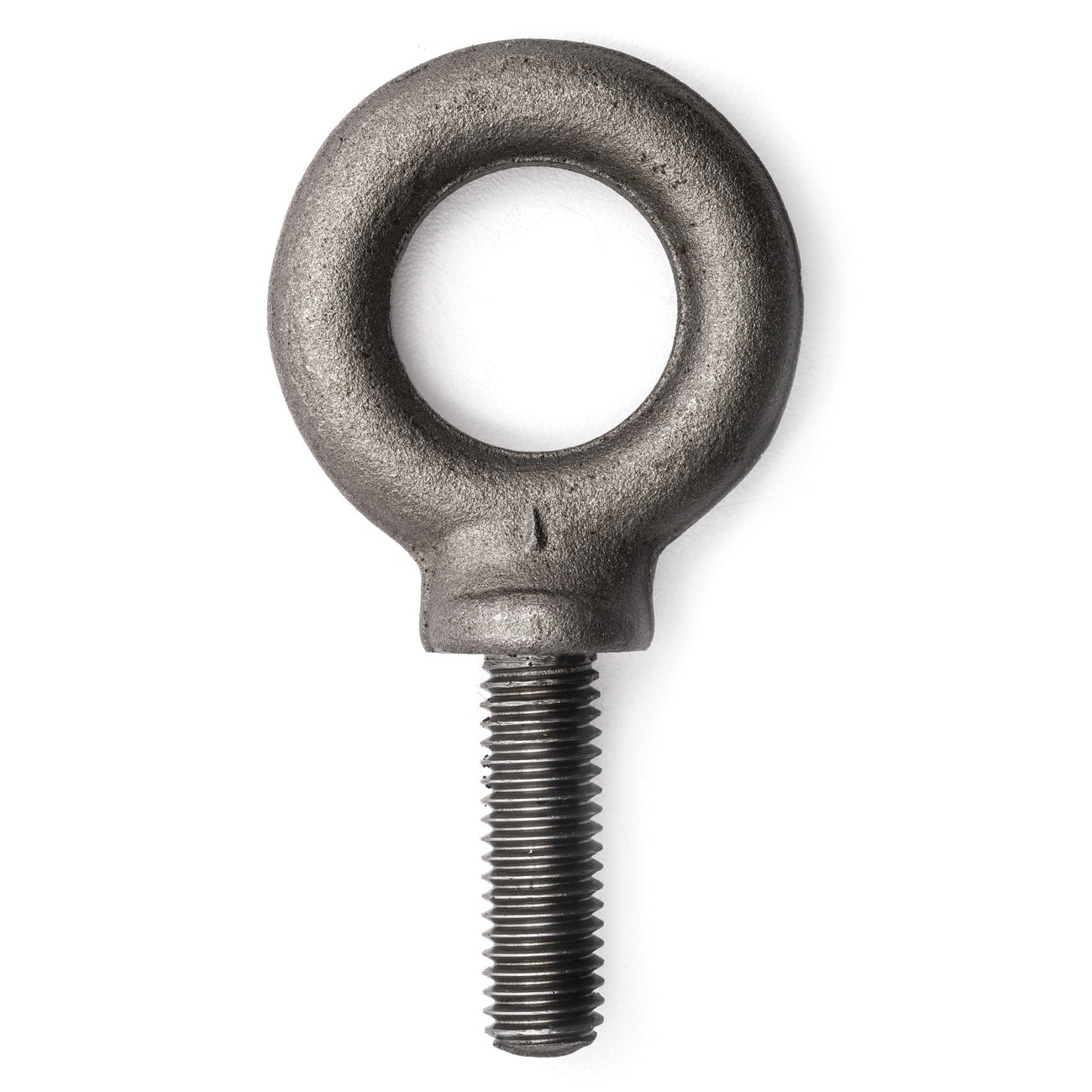

Campbell CAMPB-7100225 Fixed Shoulder Eye Bolt 5/8-11 1-3/4 in L C-1030

Product Description

Campbell® CAMPB-7100225 is a fixed shoulder eye bolt designed for heavy lifting applications. This eye bolt features a diameter of five eighths by eleven threads per inch and offers a shank length of one and three quarter inches. Made from drop forged carbon steel, it is suitable for various industrial applications.

• Working load limit of four thousand pounds.
• Fully threaded shank for secure attachment.
• Complies with ASME B18.15 and ASTM A489 standards.

Product Highlights

The Campbell® eye bolt is ideal for lifting operations that require reliable strength and durability. The fully threaded design allows for secure fastening, making it suitable for various lifting scenarios.

Product Information

Standard Information

• Brand: Campbell®
• MPN: CAMPB-7100225

Technical Specifications

• Inside Eye Diameter: 1-3/8 in
• Material Specification: C-1030
• Outside Eye Diameter: 2-1/2 in
• Overall Length: 4-3/4 in
• Shank Type: Fully Threaded
• Thread Length: 1-3/4 in
• Thread Type: UNC
• Working Load: 4000 lb
• Measurement System: Imperial
• Diameter - Thread Size: 5/8-11
• Shank Length: 1-3/4 in
• Material: Drop Forged Carbon Steel
• Type: Fixed Shoulder
• Finish: Self-Colored
