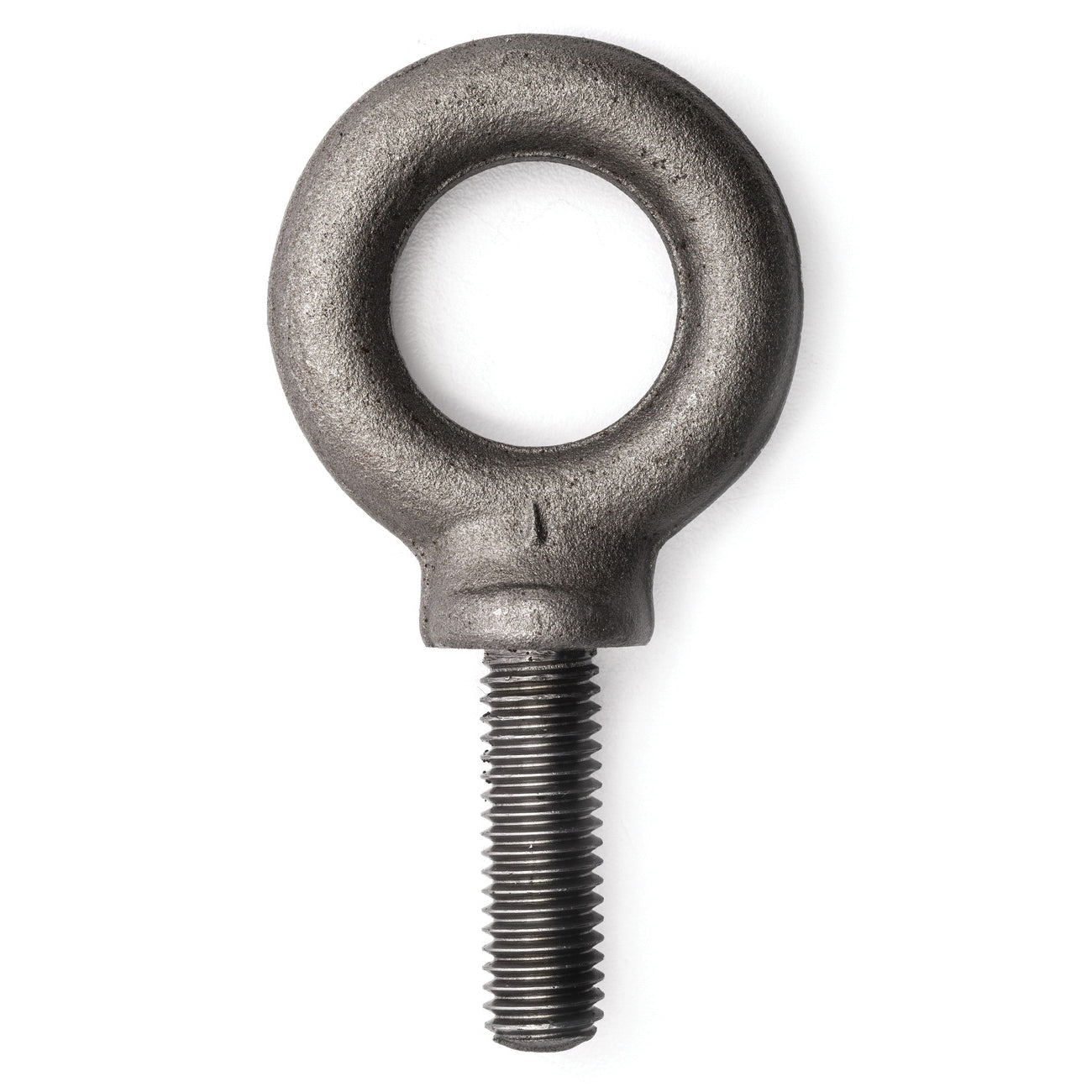

Campbell CAMPB-7100224 Fixed Shoulder Eye Bolt 1/2-13 1-1/2 in L Shank

Product Description

The Campbell CAMPB-7100224 is a fixed shoulder eye bolt suitable for various lifting tasks. This product is constructed from drop forged carbon steel and is self-colored. It features a diameter of one half-inch by thirteen threads per inch and a shank length of one and a half inches. The eye bolt has an inside diameter of one and seven eighths inches and an outside diameter of two and one eighths inches. With an overall length of four inches, it has a working load limit of two thousand six hundred pounds.

• Manufactured from drop forged carbon steel
• Working load limit of 2600 lb
• Fully threaded design for secure mounting

Product Highlights

This eye bolt is ideal for vertical pulls and maintains reliability when used as recommended. It is important to avoid angular lifts to prevent added stress on the eye bolt.

Product Information

Standard Information

• Brand: Campbell
• MPN: CAMPB-7100224

Technical Specifications

• Inside Eye Diameter: 1-7/8 in
• Material Specification: C-1030
• Outside Eye Diameter: 2-1/8 in
• Overall Length: 4 in
• Shank Type: Fully Threaded
• Thread Length: 1-1/2 in
• Thread Type: UNC
• Working Load: 2600 lb
• Measurement System: Imperial
• Diameter - Thread Size: 1/2-13
• Shank Length: 1-1/2 in
• Material: Drop Forged Carbon Steel
• Type: Fixed Shoulder
• Finish: Self-Colored
