Campbell CAMPB-7100223 Fixed Shoulder Eye Bolt 3/8-16 1-1/4 in L

Product Description

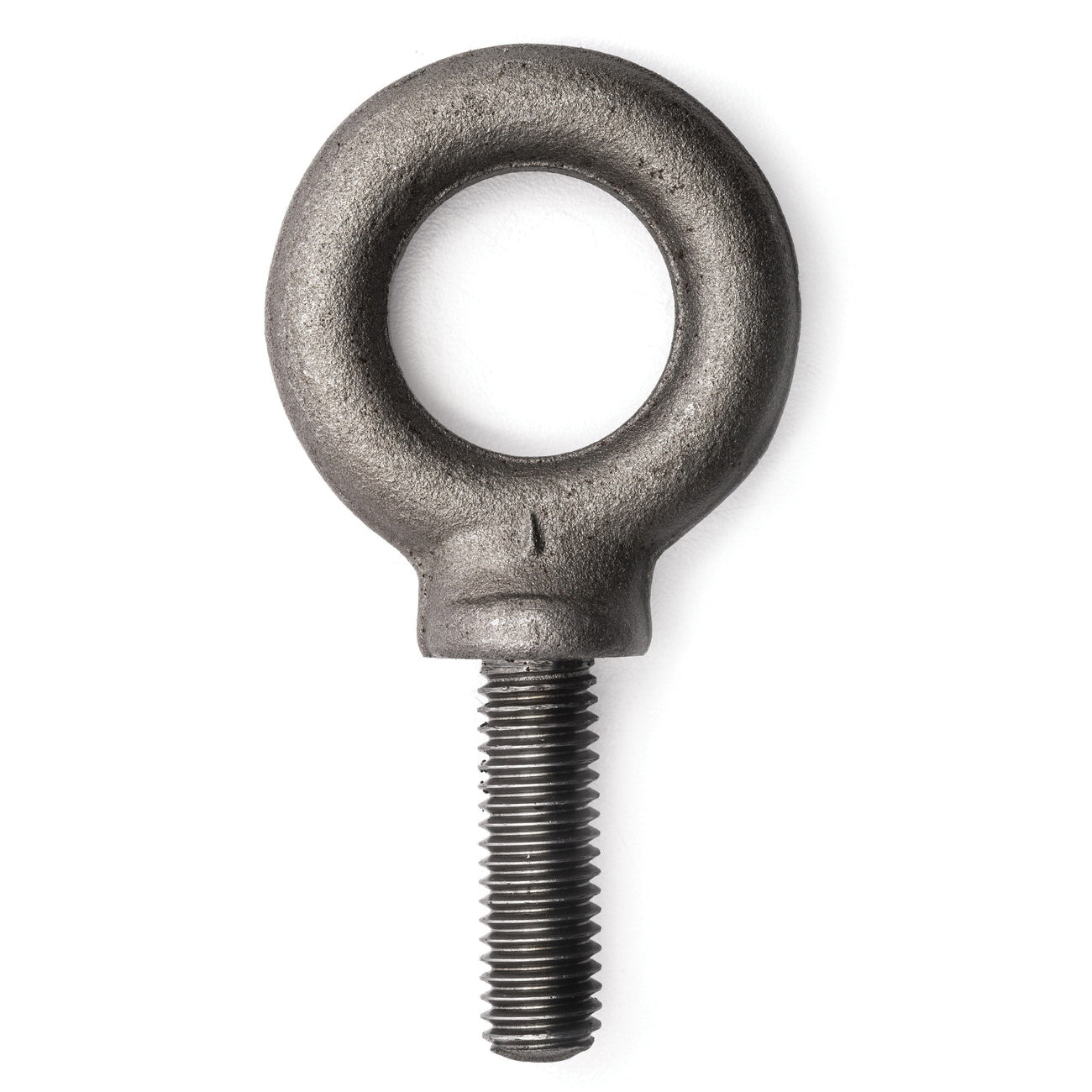

The Campbell CAMPB-7100223 is a fixed shoulder eye bolt made from drop forged carbon steel. This eye bolt measures three-eighths by sixteen threads and has a shank length of one and one-fourth inches. The inside eye diameter is one inch, while the outside eye diameter is one and twenty-one thirty-seconds inches. It supports a working load limit of fourteen hundred pounds.

• Drop forged carbon steel construction
• Working load limit: 1400 lb
• Fully threaded shank

Product Highlights

This eye bolt is ideal for lifting and securing loads in various applications. Its fully threaded shank allows for versatile use in different settings.

Product Information

Standard Information

• Brand: Campbell
• Manufacturer: Apex Tool Group

Technical Specifications

• Inside Eye Diameter: 1 in
• Material Specification: C-1030
• Outside Eye Diameter: 1-21/32 in
• Overall Length: 3-1/4 in
• Shank Type: Fully Threaded
• Thread Length: 1-1/4 in
• Thread Type: UNC
• Measurement System: Imperial
• Diameter - Thread Size: 3/8-16
• Finish: Self-Colored
• Type: Fixed Shoulder
