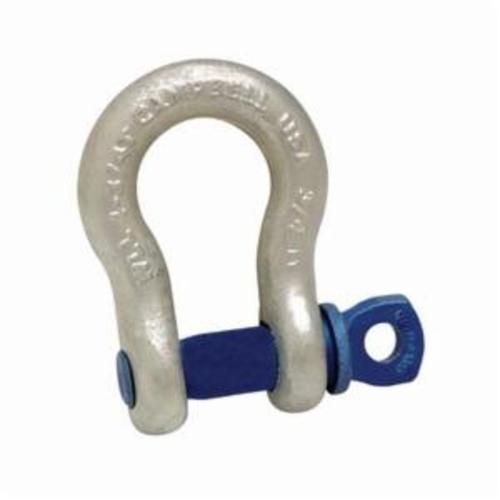

Campbell CAMPB-5410735C Anchor Shackle 1.5 Ton 7/16 in Replacement MPN

Product Description

The Campbell CAMPB-5410735C Anchor Shackle is a reliable lifting solution with a one and a half ton load capacity. The design includes a screw pin and features a size of seven sixteenths of an inch. Made with a drop forged carbon steel body, it is suitable for a variety of rigging applications.

• Working load limit is permanently marked on each shackle.
• Produced to meet ASME B30.26 standards for safety and durability.
• Galvanized finish offers protection against corrosion.

Product Highlights

This anchor shackle combines strength and reliability, meeting high safety standards for lifting applications.

Product Information

Standard Information

• Brand: Campbell
• Manufacturer Name: Apex Tool Group

Technical Specifications

• Body Material: Drop Forged Carbon Steel
• Pin Material: Alloy Steel
• Load Capacity: 1.5 ton
• Size: 7/16 in
• Pin Diameter: 1/2 in
• Eye Outer Size: 1-1/8 in
• Inner Length: 1-3/4 in
• Inner Width: 1-5/32 in
• Opening Size: 23/32 in
• Pin Type: Screw
• Finish: Galvanized
