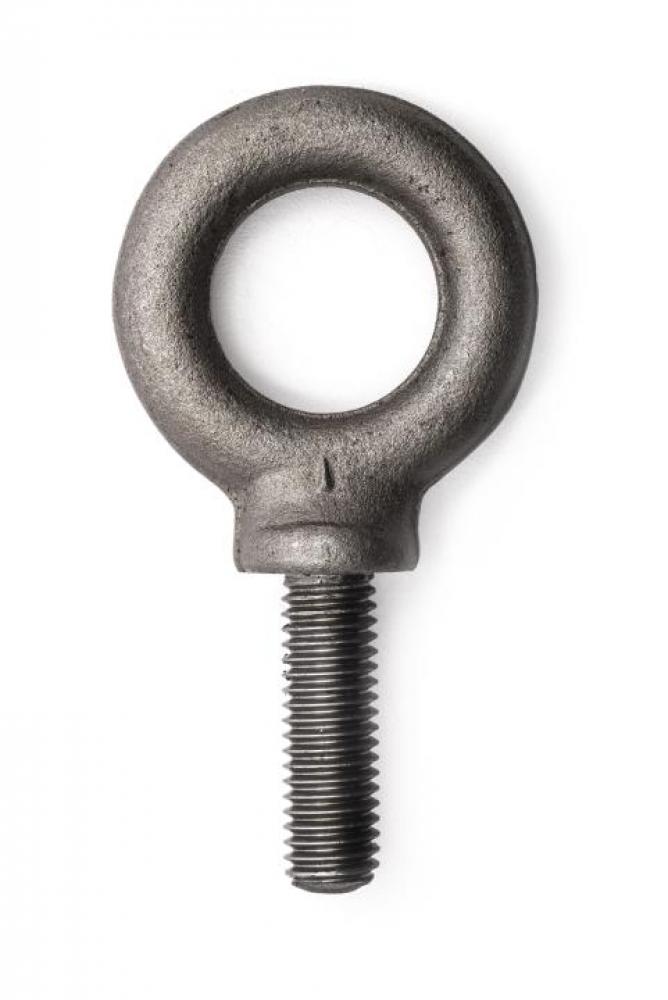

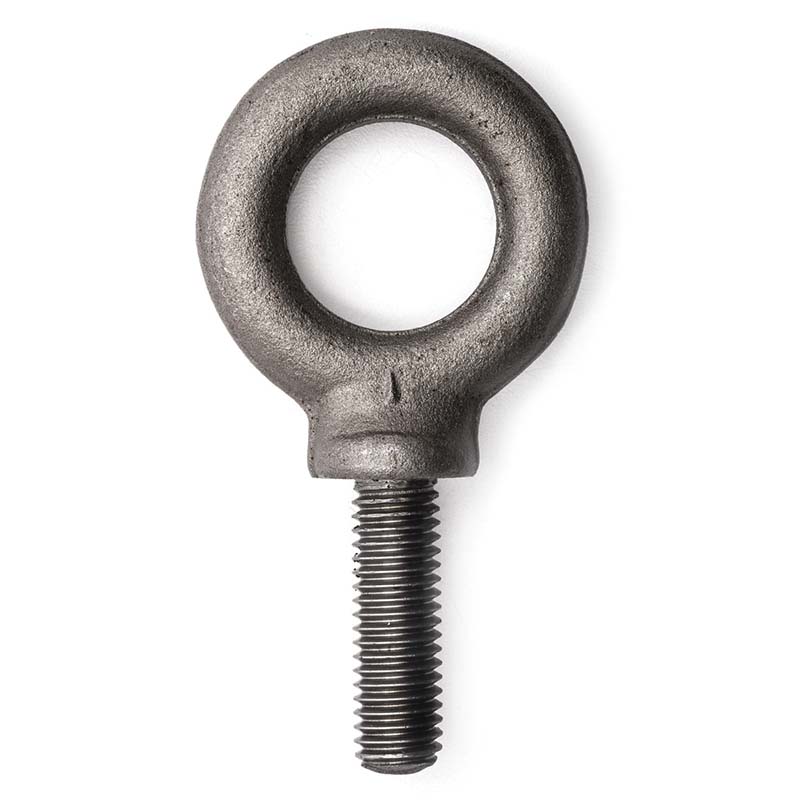

Campbell 7100225 Eye Bolt Shldr Thrd 5/8 inches

Product Description

The CAMPBELL 7100225 Eye Bolt Shldr Thrd 5/8" is designed for material handling, chain cable rope, and accessory applications. Constructed from forged carbon steel, it features unified national coarse threads. It is recommended for use whenever possible since there is no guarantee that a load will not be subjected to an angular lift and forces.

• Drop forged and tempered for strength
• Features Unified National Coarse (U.N.C.) threads
• Maximum load capacity of 4000 lb at 0 degrees

Product Highlights

The CAMPBELL eye bolt is ideal for vertical pulls and situations where angular lifts may occur. Meets ASME B18.15 and ASTM A489 standards.

Product Information

Standard Information

• Brand: CAMPBELL
• Manufacturer Part Number: 7100225
• Country of Origin: US

Technical Specifications

• MPN: 7100225
• Brand: CAMPBELL
• Category 1: MATERIAL HANDLING
• Category 2: CHAIN CABLE ROPE & ACCESSORIES
• Family: Campbell Shoulder Pattern Eye Bolts
• Manufacturer: Apex Tool Group
• WebUOM: EA
• Eye Inner Diameter [Nom]: 1 3/8 in
• Eye Outer Size: 2 1/2 in
• Load [Max] @ Angle: 4,000 lb @ 0 °; 2,000 lb @ 30 °; 1,200 lb @ 45 °; 950 lb @ 60 °; 800 lb @ 90 °
• Load Capacity [Nom]: 4000 lb
• Material: Forged Carbon Steel
• Type: Eye Bolt-Shouldered
• UPC: 020418316685
• Foreign Trade Code: 7318152095
• Set: No
• Finish: Self-Colored
• Made in USA Icon: Yes
• Shank Diameter: .62 in
• Eye Bolt Type: Fixed
• Shoulder Type: With Shoulder
• Lifting Capacity (Lb.): 4000.00
• Eye Outside Diameter (Inch): 2-1/2
• Eye Inside Diameter (Inch): 1-3/8
• Thread Size: 5/8-11
• Material Grade: C1030
• Full or Partial Threading: Fully Threaded
• UNSPSC Code: 31161610
• System Of Measurement: Inch
• Measurement System: Imperial
• Diameter - Thread Size: 5/8-11
• Working Load: 4000 lb
• Shank Type: Fully Threaded
• Material Specification: C-1030
• Industrial Category: Fasteners
• Industrial Subcategory: Bolts
• Industrial Subtype: Eyebolts
• ASME Specification: B18.15
• Base Unit of Measure: EA
• Pattern: Shoulder Pattern
• UNSPSC: Holding and clamping tools
• UPC Code: 020418316685
• Thread - TPI or Pitch: 5/8 in - 11 UNC
• Overall Length: 4.75 in
• Shank Length: 1-3/4 in
• Maximum Working Load at 0 Degrees: 4000 lb
• Overall Length (Decimal Inch): 4.7500
• Overall Length (Inch): 4-3/4
• Thread Length: 1-3/4 in
• Packaging Type: Bagged
• Eye Diameter; Inside: 1-3/8 in
• Eye Diameter; Outside: 2-1/2 in
• Length Under Eye: 1-3/4 in
