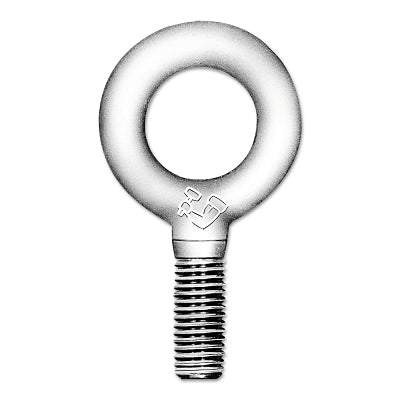

CAMPBELL 7100223 Shoulder Pattern Eye Bolts 3/8 in - 16 UNC

Product Description

The CAMPBELL 7100223 is a shoulder pattern eye bolt designed for various material handling tasks. Made by Apex Tool Group, this eye bolt measures three eighths of an inch in diameter with sixteen Unified National Coarse threads. It is suitable for use in multiple applications, providing reliable load support. The drop forged construction ensures strength and durability needed for demanding environments.

• Drop forged with quenched and tempered design for strength
• Furnished with Unified National Coarse (U.N.C.) threads
• Load capacity of fourteen hundred pounds at a zero-degree angle

Product Highlights

This eye bolt is ideal for heavy lifting and rigging applications, ensuring secure attachment for a variety of loads.

Product Information

Standard Information

• Brand: CAMPBELL
• Manufacturer: Apex Tool Group

Technical Specifications

• MPN: 7100223
• Material: Forged Carbon Steel
• Overall Length: 1.25 inches
• Eye Inner Diameter: 1 inch
• Load Capacity: 1400 lb at 0°, 650 lb at 30°, 350 lb at 45°, 325 lb at 60°, 275 lb at 90°
• Quantity: 1 per box
• Weight: 0.13 lb
• Thread: 3/8 in - 16 UNC
