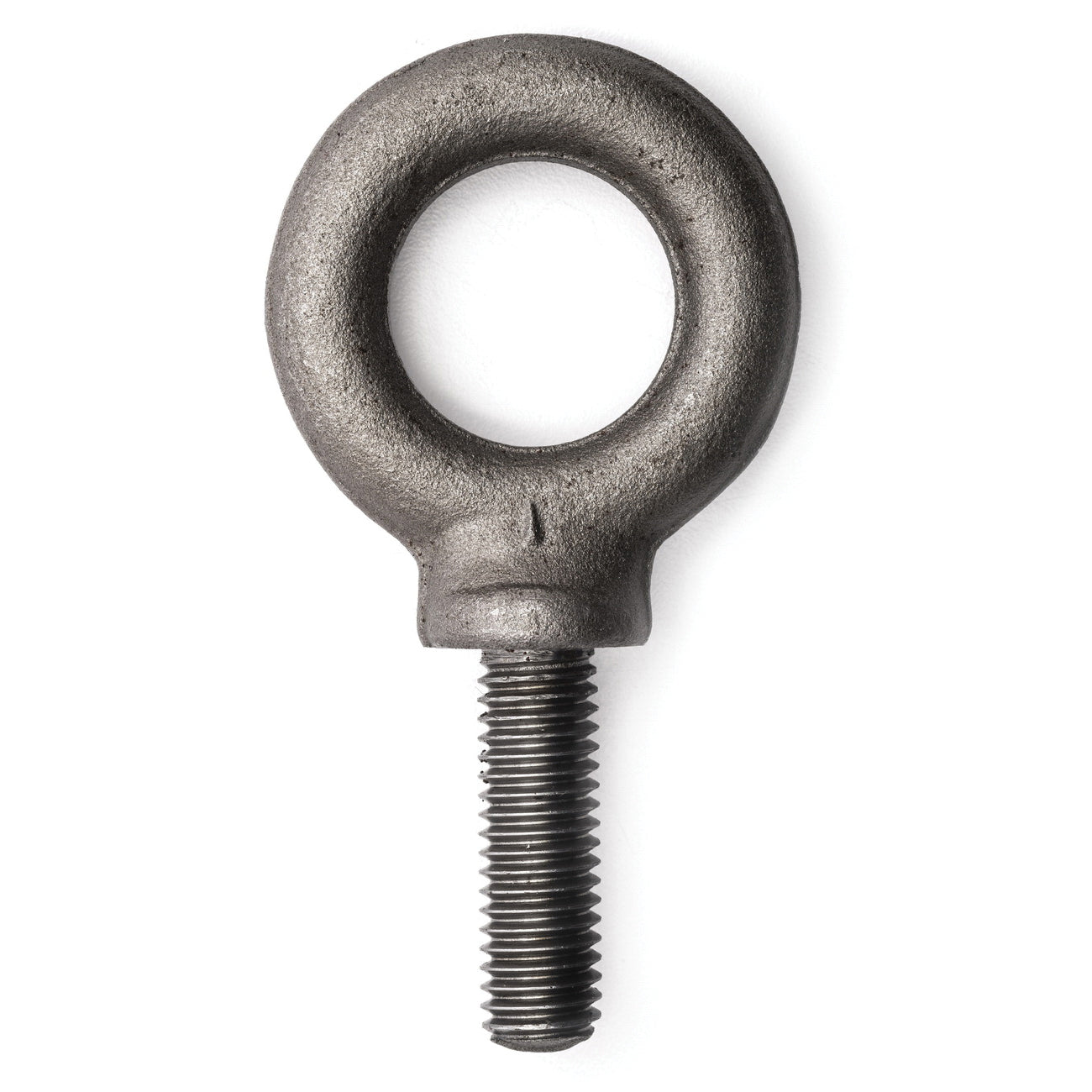

Campbell 7100222 Fixed Shoulder Eye Bolt 5/16-18

Product Description

Campbell is known for its quality products. The CAMPB-7100222 is a fixed shoulder eye bolt made from drop forged carbon steel. Its dimensions include a shank length of one and one-eighth inches and a diameter of five-sixteenths inch. The working load limit is eight hundred pounds, making it suitable for various lifting applications.

• Made of drop forged carbon steel
• Working load limit of 800 pounds
• Threaded for secure attachment

Product Highlights

This eye bolt is designed for vertical pulls and should not be subjected to angular lifts. Regular inspection is advised to ensure safety.

Product Information

Standard Information

• Brand: Campbell
• MPN: CAMPB-7100222

Technical Specifications

• Inside Eye Diameter: 7/8 in
• Material Specification: C-1030
• Outside Eye Diameter: 1-7/16 in
• Overall Length: 2-3/4 in
• Shank Type: Fully Threaded
• Thread Length: 1-1/8 in
• Thread Type: UNC
• Measurement System: Imperial
• Diameter - Thread Size: 5/16-18
• Material: Drop Forged Carbon Steel
• Finish: Self-Colored
