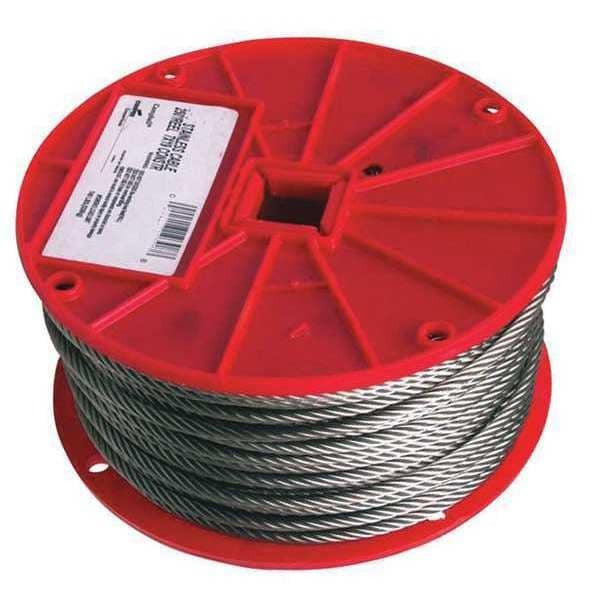

Campbell 7000626 Stainless Steel Wire Rope 3/16 in 7x19 250 Ft

Product Description

The CAMPBELL 7000626 is a Type 304 stainless steel wire rope supplied on a 250-foot reel. Constructed with a 7x19 strand classification, this cable consists of 7 strands with 19 individual wires per strand, producing a flexible, high-cycle rope suited for applications requiring frequent bending over sheaves or pulleys. The cable diameter is 3/16 inches and the ends are plain, meaning no swaged fittings or loops are factory-installed. Rigging professionals, marine contractors, and millwrights commonly work with this product. Type 304 stainless steel provides corrosion resistance in wet and mildly corrosive environments.

This wire rope is used in a range of light-to-medium duty applications including sailboat rigging, architectural cable railings, davit systems, garage door assemblies, and industrial lifting or tensioning setups. The 7x19 construction is the standard choice when flexibility is a priority over stretch resistance. The 250-foot reel format suits contractors and service professionals who need job-site inventory rather than pre-cut lengths. Plain ends allow the installer to select and apply their own swage fittings, thimbles, or clamps based on the specific terminal requirements of the installation.

Key Features

• Type 304 stainless steel construction for corrosion resistance in marine and outdoor environments
• 7x19 strand classification delivers high flexibility for sheave, pulley, and bending applications
• 3/16-inch cable diameter suited for light-to-medium duty rigging and tensioning
• 250-foot reel length provides job-site supply for multiple cuts and runs
• Plain ends allow custom termination with swage fittings, wire rope clamps, or thimbles
• No coating applied, preserving the natural stainless finish

Compatibility

Designed as a standard 3/16-inch diameter 7x19 stainless steel wire rope suitable for use with compatible swage fittings, wire rope clamps, and thimbles rated for 3/16-inch cable.

Installation Notes

Installation should be performed by a qualified rigger or contractor familiar with wire rope applications and applicable load ratings. Always de-tension and secure the system before cutting or terminating cable ends. Use proper wire rope cutters to prevent fraying; field cuts with abrasive tools can compromise strand integrity. Verify that all fittings, anchors, and tensioning hardware are rated for the intended working load before placing the assembly in service.

Technical Specifications

• Material: Type 304 Stainless Steel
• Strand Classification: 7x19
• Cable Diameter: 3/16 inches
• Overall Length: 250 feet per reel
• End Type: Plain
• Coating: None
• Country of Origin: China

Standard Information

• Brand: CAMPBELL
• Manufacturer Part Number: 7000626
