Campbell 6506000 Shackle Kit 0.5 Ton Gx Clamp

Product Description

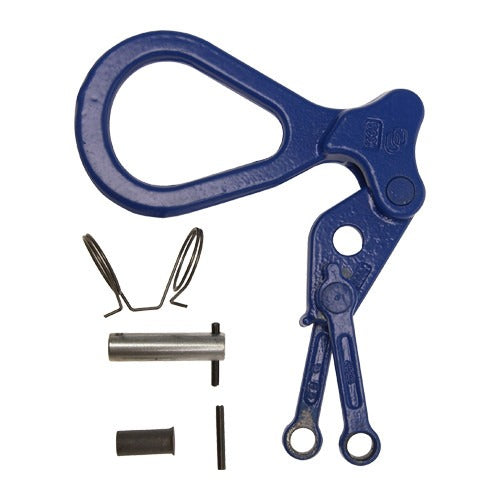

The CAMPBELL 6506000 is a shackle kit designed as a repair and replacement assembly for the GX series 0.5-ton clamp. The kit arrives pre-assembled for faster service work, reducing bench time during maintenance or field repair. It includes all the linkage components needed to restore clamp function: one shackle, one radius link, one T-spring, two connecting links, one radius link pin, three linkage rivets, and two sel-locs. Rigging professionals and maintenance crews working with lifting clamps rely on this kit to return equipment to rated working load limit without sourcing individual components separately.

This kit is suited for repair and maintenance of the GX model clamp rated at 0.5 tons working load limit. Typical applications include industrial rigging, material handling, and shop or field maintenance where clamp components have worn or failed. The pre-assembled linkage format is particularly useful for technicians performing repairs under time constraints or in remote job site conditions where component-level sourcing is not practical.

Key Features

• Pre-assembled linkage for faster installation and reduced assembly error
• Rated for 0.5-ton working load limit when properly installed in compatible clamp
• Complete kit includes shackle, radius link, T-spring, connecting links, radius link pin, linkage rivets, and sel-locs
• OEM-style repair parts designed for the GX clamp model
• Manufactured in the USA

Compatibility

Designed for use with the CAMPBELL GX model clamp rated at 0.5 tons working load limit.

Installation Notes

Installation should be performed by qualified rigging personnel familiar with lifting clamp maintenance procedures. Before beginning any repair, remove the clamp from service and ensure it is fully unloaded and inspected for additional damage. Follow the manufacturer's assembly sequence for linkage components to ensure all rivets and sel-locs are properly seated. After reassembly, verify that the clamp operates freely through its full range of motion before returning it to rated service load.

Technical Specifications

• Working Load Limit (WLL): 0.5 tons
• Model Compatibility: GX
• Type: Repair Parts / Kit
• Country of Origin: USA

Standard Information

• Brand: CAMPBELL
• Manufacturer Part Number: 6506000
