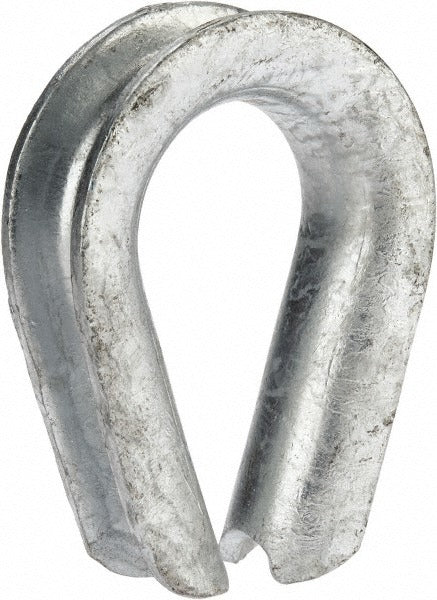

Campbell 6260207 Wire Rope Thimble Clip 3/4 in Steel

Product Description

The CAMPBELL 6260207 is a steel wire rope thimble clip designed to form a secure, fixed loop at the end of a 3/4-inch wire rope. It combines a locking latch thimble fitting with a heavy-galvanized steel construction to protect the rope loop from crushing and abrasion at the bend point. The thimble fits inside the loop to maintain the rope's natural curve and distribute load across the wire strands. At 1.41 pounds, this is a solid, field-ready hardware component suited for rigging, lifting, and tie-down applications where loop integrity under sustained load is required. Licensed riggers, ironworkers, and general contractors are the typical installers.

This thimble clip is used in wire rope rigging assemblies across construction, marine, agricultural, and industrial maintenance applications. It is appropriate for residential and commercial job sites wherever a 3/4-inch wire rope termination is needed. The locking latch design helps retain the thimble during assembly before final clamping hardware is secured. The heavy-galvanized finish provides corrosion resistance in outdoor, coastal, and high-moisture environments where bare steel hardware would be susceptible to rust and degradation.

Key Features

• Fits 3/4-inch wire rope diameter for a precise, load-bearing loop termination
• Locking latch thimble fitting keeps the thimble seated during assembly
• Heavy-galvanized steel finish resists corrosion in outdoor and marine environments
• Clamp width of 3.8125 inches accommodates standard rigging hardware spacing
• Loop inside width of 1.875 inches provides clearance for shackles and hook attachments
• Weighs 1.41 pounds — durable steel construction without excessive bulk

Compatibility

Designed as an OEM-style replacement and standard rigging component for use with 3/4-inch wire rope assemblies requiring a thimble clip termination.

Installation Notes

Installation should be performed by a qualified rigger or tradesperson familiar with wire rope termination procedures and applicable ASME B30 or OSHA rigging standards. Always relieve tension from the wire rope before installing or inspecting thimble clips. Verify the thimble is fully seated in the loop and secured with the appropriate number and spacing of wire rope clips before applying load. Do not substitute this thimble for a different rope diameter or exceed the rated working load of the complete rigging assembly.
