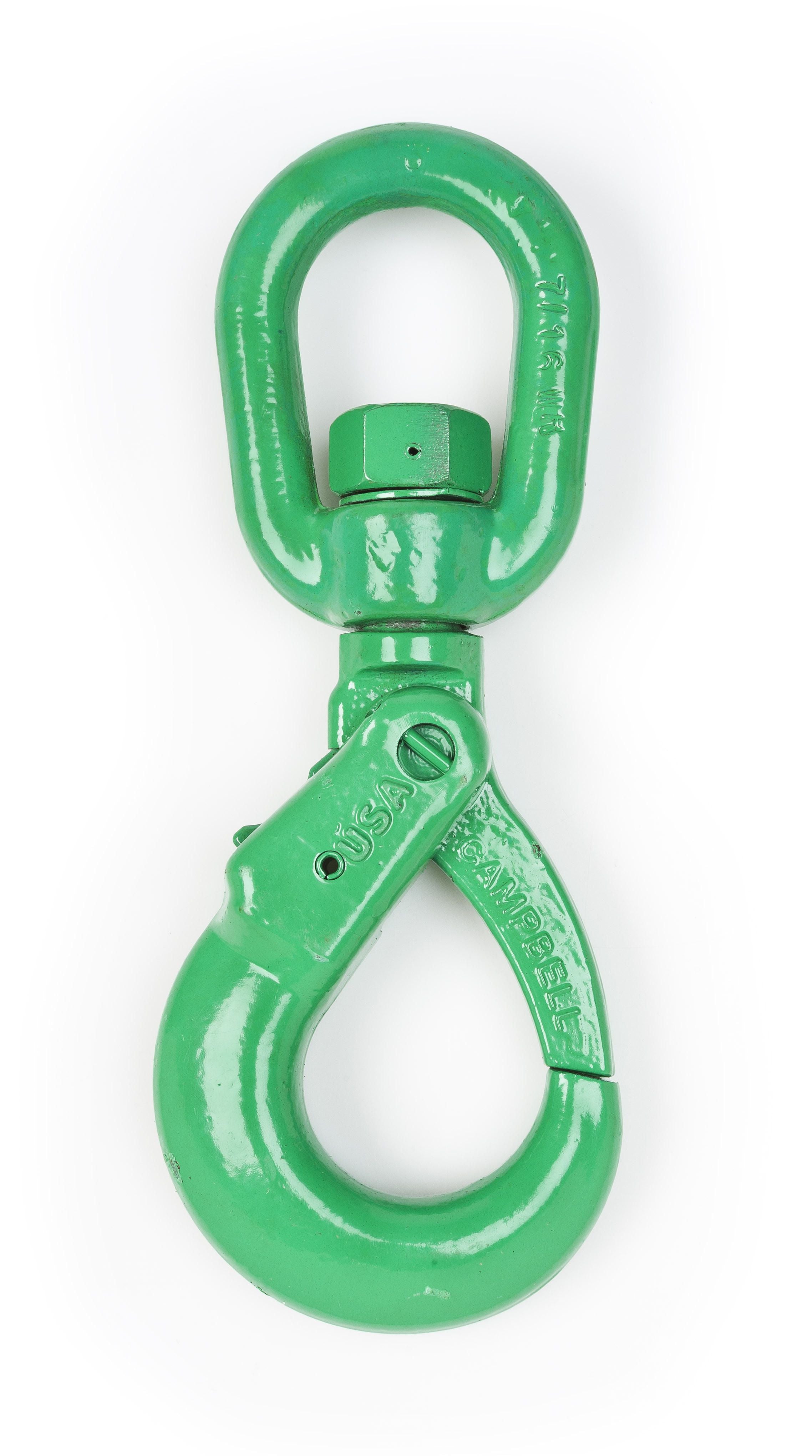

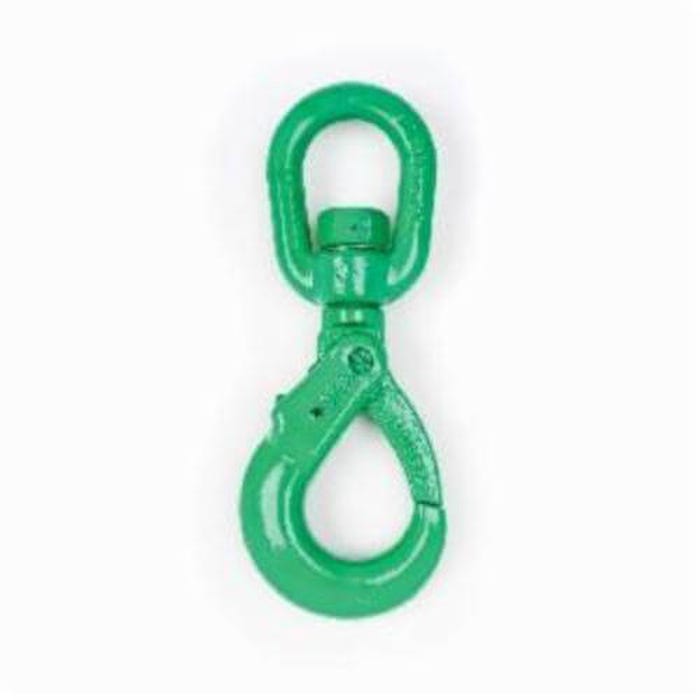

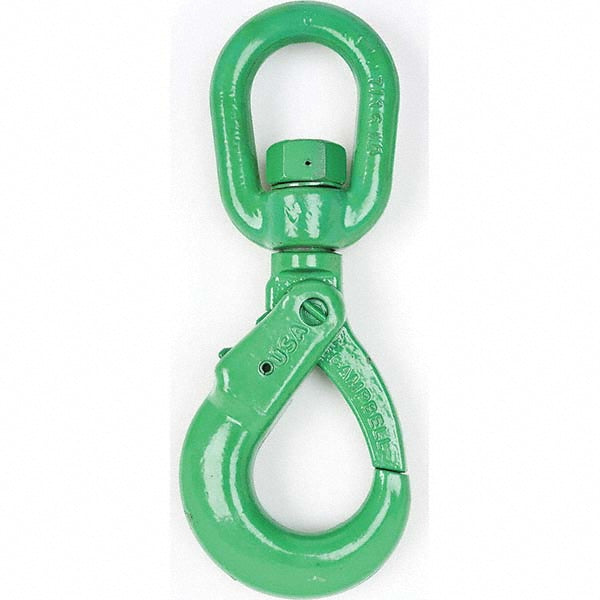

Campbell 5798895 Cam-Alloy Swivel Self Locking Hook 1/2 in

Product Description

The Campbell 5798895 Cam-Alloy Swivel Self Locking Hook is crafted from Grade 100 alloy steel and designed for 1/2 inch chain or 5/8 inch wire rope. It is manufactured in the USA and complies with ASME B30.9 and B30.10 standards. The product is fatigue and 100% proof tested according to ASTM A952 and is marked with 'USA' along with a date code. This hook is compliant with OSHA Regulation 1926.550(g)(4)(iv)(b).

• Meets or exceeds ASME B30.9 and B30.10 requirements.
• Fatigue and proof tested as per ASTM A952 standards.
• Self-locking latch closes automatically under load.

Product Highlights

This self-locking swivel hook is suitable for overhead lifting applications and has a working load limit of 15,000 pounds at a 4-1 design factor.

Product Information

Standard Information

• Brand: Campbell
• Country of Manufacture: United States

Technical Specifications

• Working Load Limit 4 to 1: 15000 lb
• Working Load Limit 5 to 1: 12000 lb
• Chain Size: 1/2 inch
• Wire Rope Size: 5/8 inch
• Material: Alloy Steel
• Finish: Painted Green
• Dimensions: A - 4.50 inches, B - 2.50 inches, C - 1.312 inches, D - 1.796 inches, E - 5.404 inches, F - 2.25 inches, R - 11.25 inches, G - 1.00 inch, H - 1.281 inches, J - 1.75 inches
• Trade Size: 1/2 inch
