Campbell 5625215 Eye Hook 35300 Lb Grade 100 Alloy Steel

Product Description

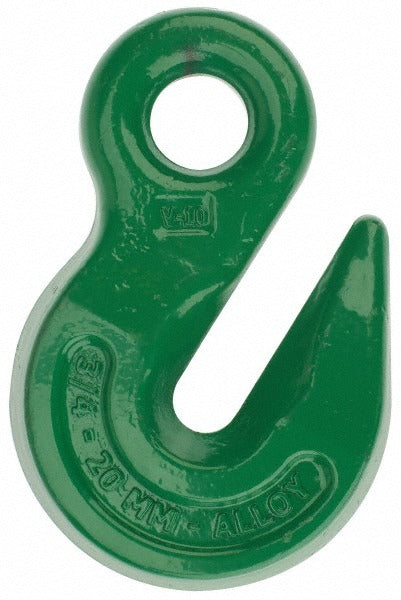

The CAMPBELL 5625215 is a Grade 100 alloy steel eye hook rated for 35,300 pounds working load, designed for use with 3/4-inch Grade 100 lifting chain. The eye hook connects directly into a chain assembly via its integral eye, providing a secure anchor point or load attachment in overhead lifting, rigging, and load-securement applications. With a hook throat opening of 0.94 inches and an overall length of 8.28 inches, this hook is sized for heavy-duty industrial and construction rigging work. Installation and inspection are typically performed by qualified riggers or millwrights following ASME B30 standards for overhead lifting.

This eye hook is used in industrial lifting and rigging assemblies where Grade 100 chain systems are specified. Typical applications include overhead hoisting, crane rigging, load binders, and tie-down assemblies in manufacturing, construction, and heavy transport environments. The 1.44-inch eye inside diameter accommodates standard shackles, master links, and rigging hardware sized for 3/4-inch Grade 100 chain systems. The 5.15-inch reach provides adequate clearance for hook engagement in congested rigging configurations.

Key Features

• 35,300-pound working load limit rated for Grade 100 chain rigging
• Forged alloy steel construction meets Grade 100 strength requirements
• 0.94-inch hook throat opening sized for 3/4-inch Grade 100 chain
• 1.44-inch eye inside diameter fits standard master links and shackles
• 5.15-inch reach for clearance in rigging assemblies
• 8.28-inch overall length for use in heavy-load chain configurations

Compatibility

Designed for use with 3/4-inch Grade 100 alloy chain systems in overhead lifting and rigging assemblies.

Installation Notes

Installation should be performed by a qualified rigger familiar with ASME B30 overhead lifting standards. Inspect the hook, eye, and latch mechanism for deformation, cracks, or wear before each use. Never exceed the rated working load limit, and ensure all connecting hardware is rated to match the Grade 100 chain system. Remove from service immediately if any distortion or damage is detected.
