CAMPBELL 5624815 Cam Alloy Grab Eye Hook 1/2 In. Replacement MPN

Product Description

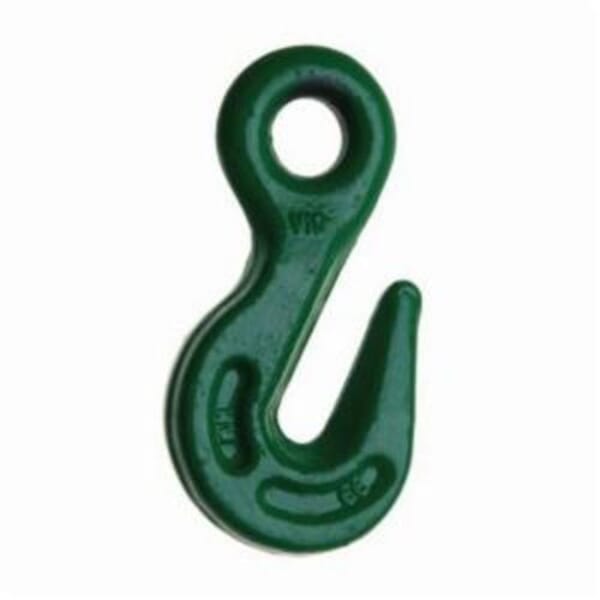

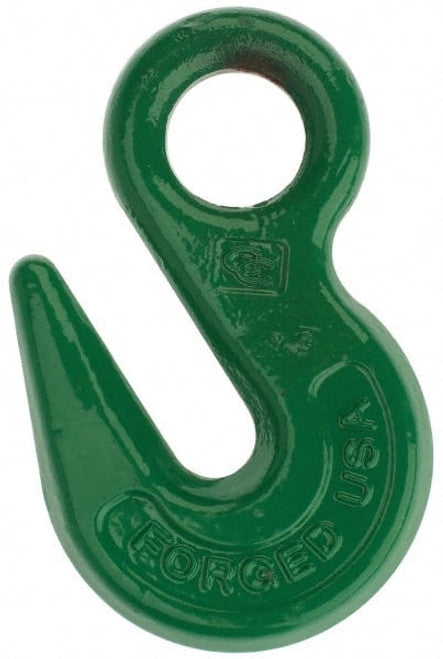

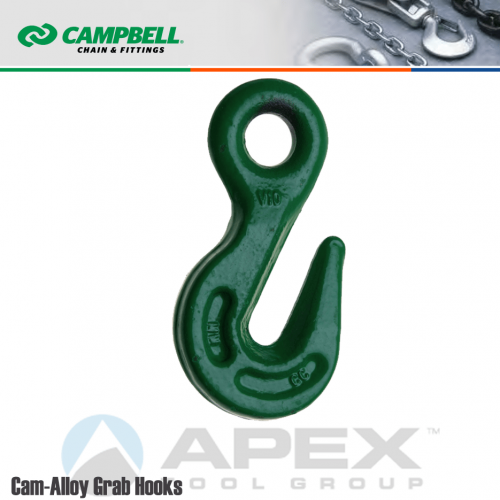

The CAMPBELL 5624815 is a Grade 100 alloy steel grab eye hook designed for heavy-duty applications with 1/2 inch chain. This hook features an eyelet attachment for safe and secure lifting. It is painted green for visibility and corrosion resistance. The hook has a throat opening of 0.66 inches and an eye diameter of 1.12 inches. Its robust design has a four to one design factor and is proof tested in accordance with ASTM A952.

• Designed for use with Grade 80/100 chain slings.
• Working load limit of 15000 lb.
• Complies with ASME B30.9 and B30.10 standards.

Product Highlights

This eye hook is suitable for overhead lifting and meets strict safety standards.

Product Information

Standard Information

• Manufacturer Part Number: 5624815
• Suitable For Chain Size: 1/2 inch

Technical Specifications

• Grade: Grade 100
• Material: Alloy Steel
• Finish: Painted Green
• Working Load Limit: 15000 lb
• Hook Number: C-75
• Hook Opening: 0.66 inches
• Overall Length: 5.40 inches
• Overall Width: 3.50 inches
• Eye Diameter: 1.12 inches
• Es Dimension: 0.56 inches
• D Dimension: 1.44 inches
• R Dimension: 3.40 inches
• T Dimension: 0.66 inches
• W Dimension: 0.88 inches
• Attachment Type: Eyelet
• Country of Origin: US
