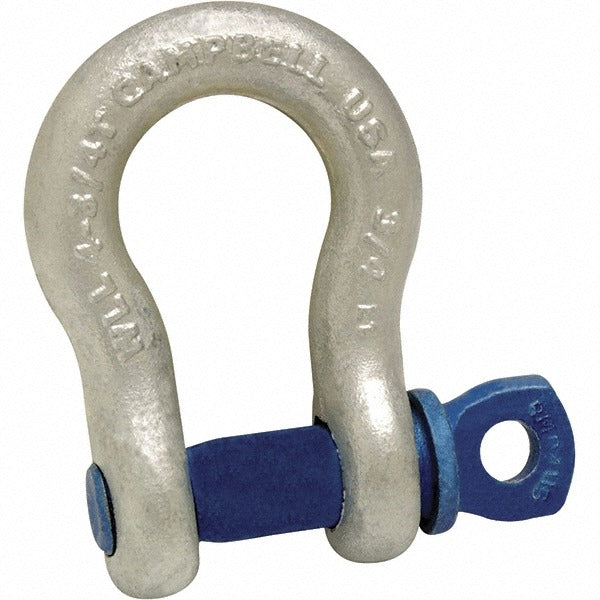

Campbell 5412435 Anchor Shackle 34000 Lb Screw Pin Galvanized

Product Description

The CAMPBELL 5412435 is a heavy-duty anchor shackle with a screw pin design, rated to a 34,000 lb working load limit. Constructed from carbon steel with a galvanized finish, this shackle is built for demanding rigging, lifting, and load-securing applications. The anchor-style bow provides a wider bearing surface compared to chain shackles, making it suited for multi-leg sling connections and load attachment points where side loading or angular pull is a factor. At 16 pounds, it is a substantial piece of hardware intended for industrial and commercial rigging work performed by qualified riggers and lift planners.

This anchor shackle is used in construction, marine, industrial, and utility rigging where high working load limits and corrosion resistance are required. The galvanized carbon steel construction provides protection against rust in outdoor and marine environments. The screw pin configuration allows for secure, removable attachment during non-permanent rigging setups. It is appropriate for use with wire rope slings, chain slings, hooks, and structural attachment points in both overhead lifting and horizontal pulling applications.

Key Features

• 34,000 lb working load limit for heavy industrial rigging applications
• Anchor shackle bow geometry supports multi-leg and angled sling connections
• Screw pin closure for secure, field-removable attachment
• Carbon steel construction with galvanized finish for corrosion resistance
• Meets ASTM A-153 galvanizing standard
• Jaw inside height of 5.75 inches accommodates large fitting and sling hardware

Compatibility

Designed as an OEM-style replacement or direct-use anchor shackle for heavy rigging, lifting, and load-securing applications requiring a screw pin anchor shackle at a 34,000 lb working load limit.

Installation Notes

Installation and use should be performed by qualified riggers familiar with applicable ASME B30 rigging standards and local safety regulations. Verify the working load limit of all connected hardware in the rigging system meets or exceeds the intended load before use. Always thread the screw pin fully and secure it to prevent accidental backing out under load. Never exceed the rated working load limit, and inspect the shackle for deformation, cracks, or corrosion before each use.
