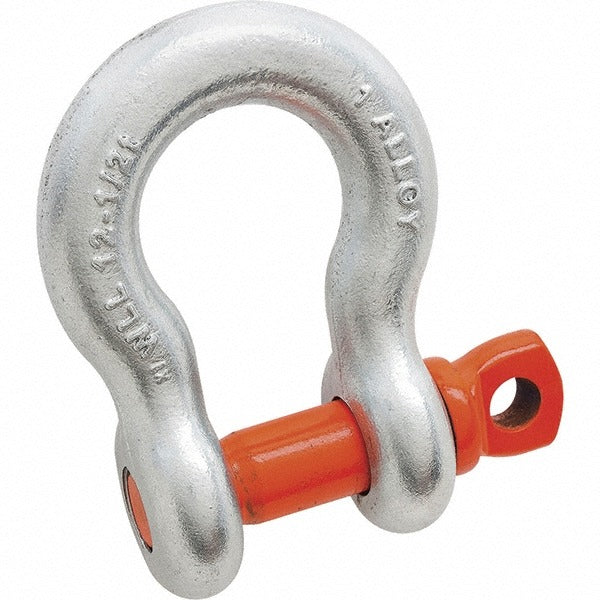

Campbell 5411695 Anchor Shackle Screw Pin 1 Inch

Product Description

The CAMPBELL 5411695 is a screw pin anchor shackle designed for heavy-duty rigging, lifting, and load-securing applications. Forged from alloy steel with a hot-dip galvanized finish meeting ASTM A-153, this shackle delivers corrosion resistance and structural integrity in demanding field conditions. The anchor (bow) body shape accommodates loads from multiple directions, making it well suited for applications where the load line is not strictly in-line with the pin. The screw pin design allows for quick installation and removal without special tooling. At 5 pounds, this is a substantial piece of hardware built for commercial and industrial rigging work performed by qualified riggers and trade professionals.

This shackle is used in rigging, crane work, construction, marine, and industrial load-handling applications. The 1-inch chain size rating and 2-3/8-inch maximum bow thickness allow it to connect to heavy-gauge chain, wire rope, or rigging hardware in both permanent and temporary configurations. It is commonly installed in overhead lifting assemblies, tie-down systems, and anchor line connections where a reliable, load-rated connection point is required.

Key Features

• Forged alloy steel construction for high strength and impact resistance
• Hot-dip galvanized finish conforming to ASTM A-153 for corrosion protection
• Anchor (bow) body style accommodates multi-directional loading
• Screw pin design allows tool-free installation and field removal
• 1-inch chain size with 2-3/8-inch maximum bow thickness
• Meets ASTM A-153 galvanizing standard

Compatibility

Designed as a standard anchor shackle for use with 1-inch chain and compatible rigging hardware in overhead lifting, marine, and industrial load-securing applications.

Installation Notes

Installation should be performed by a qualified rigger familiar with applicable ASME B30 rigging standards. Before use, inspect the shackle body and pin for deformation, cracks, or corrosion. Thread the screw pin fully and secure it with a wire mousing if the connection will be subject to vibration or rotation. Never side-load the pin, and never exceed the rated working load limit marked on the shackle body.
