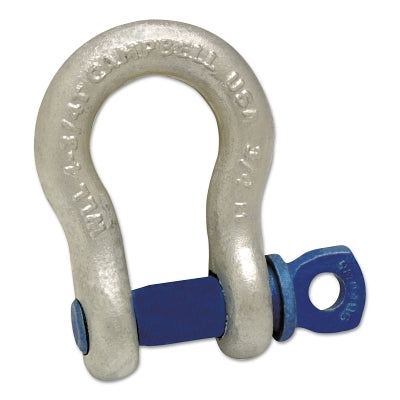

Campbell 5411235 419 Series Anchor Shackle 1-1/4 Inch Opening 3/4 Inch Bail Size 4-3/4 Ton Screw Pin Shackle

Product Description

The Campbell 5411235 419 Series Anchor Shackle is designed for robust material handling tasks.

• Constructed from drop-forged carbon steel
• Galvanized finish for durability
• Working load limit of 4-3/4 ton permanently shown on every shackle

Product Highlights

Ideal for various lifting and rigging applications, the Campbell 419 Series Anchor Shackle provides reliable performance with a 1-1/4 inch opening, 3/4 inch bail size, and a threaded screw pin for secure fastening.

Product Information

Standard Information

• Brand: Campbell
• MPN: 5411235
• UPC: 20418076312
• Country of Origin: US

Technical Specifications

• Bail Size: 3/4 in
• Finish: Galvanized Zinc
• Inner Length [Nom]: 2-13/16 in
• Inner Width [Nom]: 1-13/16 in
• Locking Type: Threaded Pin
• Material: Drop-Forged Carbon Steel
• Opening Size [Nom]: 1-1/4 in
• Pin Size [Nom]: 7/8 in
• Type: Screw Pin Shackle
• Working Load Limit: 4-3/4 t
