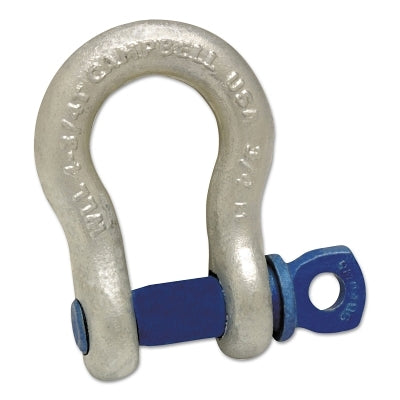

Campbell 5411205 C-419-S Series Anchor Shackle 1-1/4 inch Opening 3/4 inch Bail Size 4-3/4 t Screw Pin Shackle

Product Description

The Campbell 5411205 C-419-S Series Anchor Shackle is a reliable tool engineered for various material handling tasks. Designed with a 1-1/4 inch opening and a 3/4 inch bail size, this shackle can handle a working load limit of up to 4-3/4 tons. Made from drop-forged carbon steel, it ensures durability and strength in demanding environments.

• Constructed of drop-forged carbon steel
• Self-colored finish
• Working load limit permanently shown on shackle

Product Highlights

This Campbell shackle features a screw pin design for secure locking. It comes with a permanently marked working load limit to ensure safe use. The drop-forged carbon steel construction provides high strength and durability.

Product Information

Standard Information

• Brand: Campbell
• MPN: 5411205

Technical Specifications

• UNSPSC: 31162803
• UPC: 20418076305
• Country Of Origin: US
• Bail Size: 3/4 inch
• Finish: Self Colored
• Inner Length Nominal: 2.8125 inches
• Inner Width Nominal: 1.8125 inches
• Locking Type: Threaded Pin
• Material: Drop-Forged Carbon Steel
• Opening Size Nominal: 1.25 inches
• Pin Size Nominal: 7/8 inch
• Type: Screw Pin Shackle
• Working Load Limit: 4.75 tons
