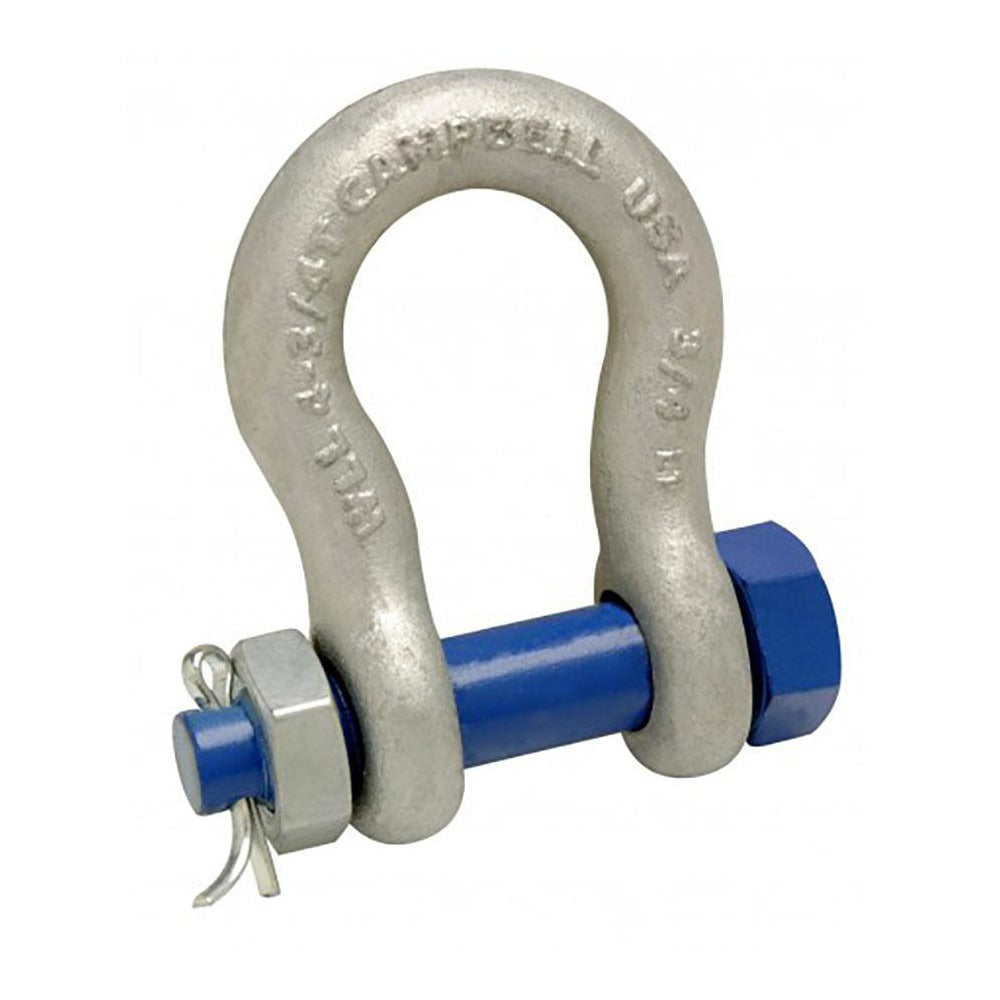

Campbell 5393235 Anchor Shackle Bolt Pin 2 Inch Galvanized

Product Description

The CAMPBELL 5393235 is a bolt-pin anchor shackle built from forged carbon steel with a galvanized finish. It is designed for heavy-duty rigging, lifting, and load-securing applications where a reliable, corrosion-resistant connection point is required. The anchor-style bow accepts multi-directional loading, making it suitable for use with wire rope, chain, and lifting hardware. The bolt-pin closure provides a secure, removable connection that can be locked in place during use. With a chain size rating of 2 inches and a maximum shackle thickness of 4-7/8 inches, this shackle is built for substantial load-handling tasks. It meets ASTM A-153 standards for hot-dip galvanizing, confirming coating quality and corrosion resistance for outdoor and industrial environments.

This shackle is used in commercial and industrial rigging, marine deck hardware, construction lifting setups, and general material handling where a strong anchor-point connection is needed. The galvanized finish makes it well suited for outdoor, coastal, or wet environments where bare steel would corrode. It is appropriate for use with appropriately rated chain, wire rope slings, hooks, and other rigging hardware. Riggers, ironworkers, and marine hardware professionals commonly specify this style of shackle for both temporary and semi-permanent rigging configurations.

Key Features

• Anchor-style bow allows multi-directional loading without side-loading the pin
• Bolt-pin closure provides a secure, removable connection point
• Forged carbon steel construction delivers high strength-to-weight ratio
• Galvanized finish meets ASTM A-153 for corrosion resistance in outdoor and marine environments
• 2-inch chain size rating for heavy-duty rigging applications
• Maximum shackle thickness of 4-7/8 inches accommodates large rigging hardware

Compatibility

Designed as a standard bolt-pin anchor shackle compatible with 2-inch chain and appropriately rated rigging hardware including wire rope slings, hooks, and lifting eyes in commercial and industrial rigging applications.

Installation Notes

Installation should be performed by a qualified rigger familiar with applicable rigging standards and load ratings. Before use, verify that all connected hardware is rated for the intended working load and inspect the shackle body, pin, and threads for damage or deformation. The bolt pin must be fully threaded and secured with the nut and cotter pin or mousing wire before any load is applied. Never side-load the pin or use the shackle beyond its rated working load limit.
