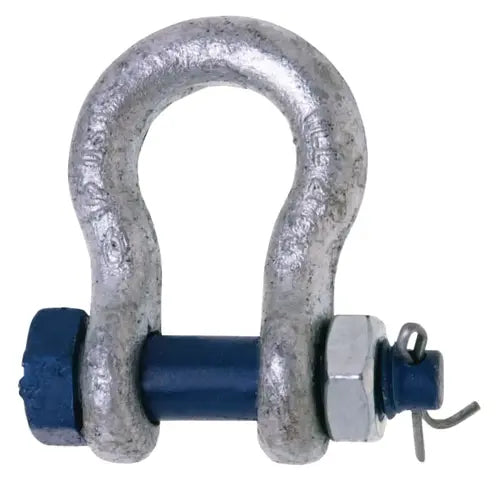

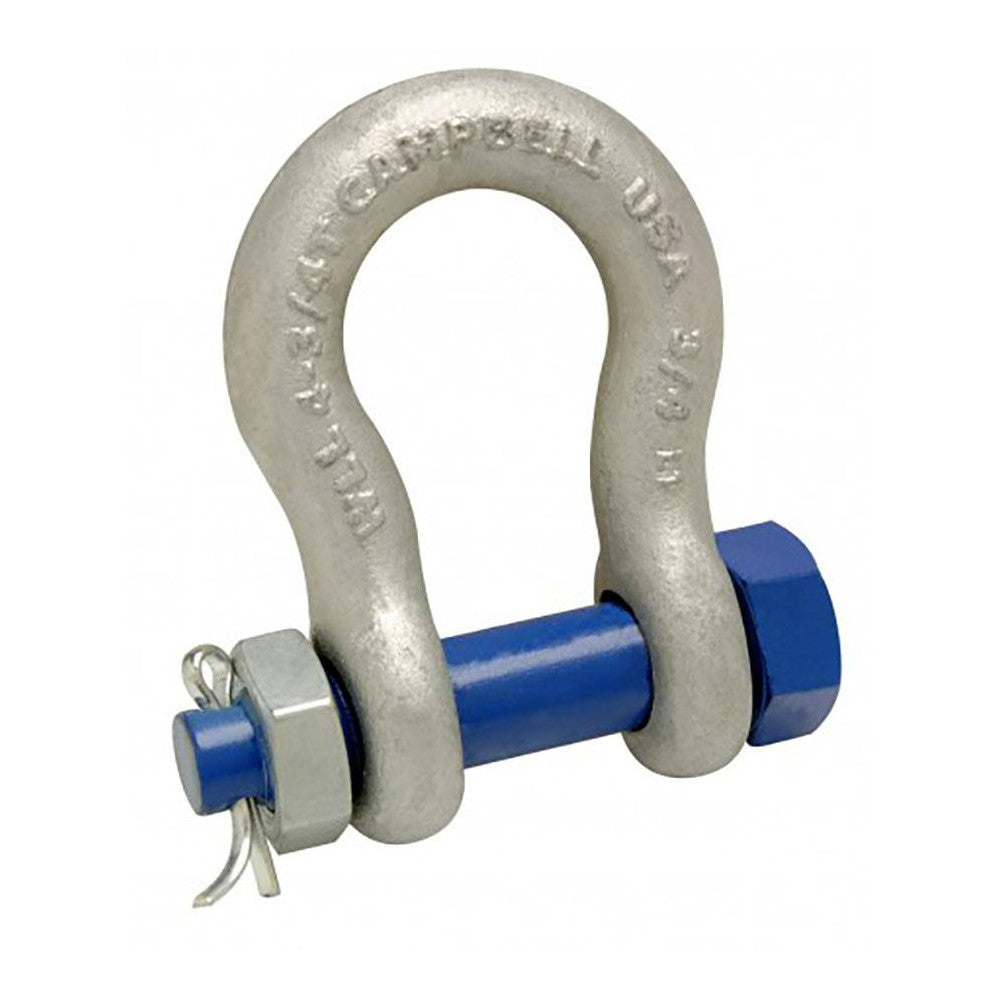

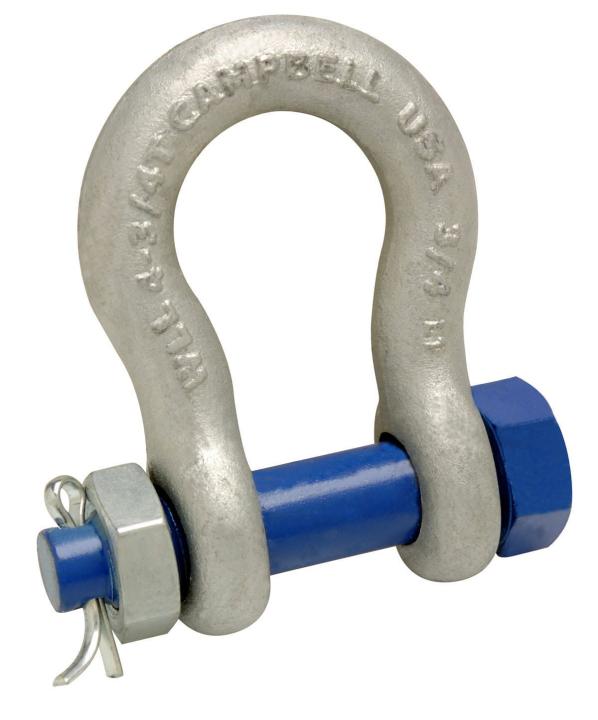

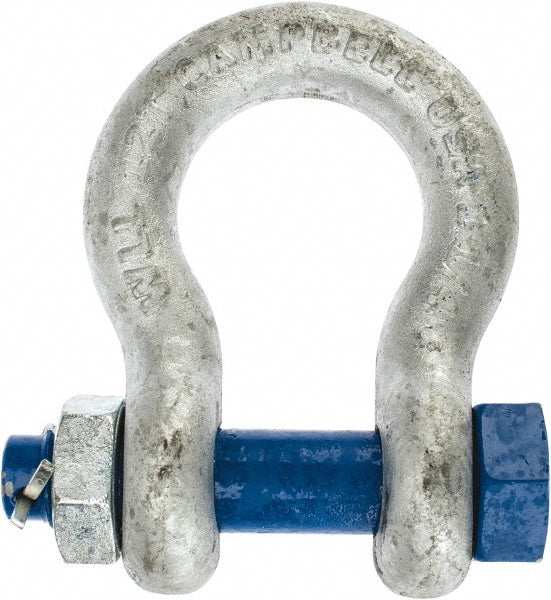

Campbell 5392035 999 Anchor Shackle W/Safe Pin Carbon 12 T

Product Description

The CAMPBELL 5392035 999 Anchor Shackle with Safe Pin is made from drop-forged carbon steel and galvanized to meet ASTM A-153 specifications. This shackle meets the design requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 3. It is ideal for rigging hardware applications.

• Shackle bodies are drop-forged carbon steel
• Galvanized to Meet ASTM A-153 Specifications
• Working load limit, size, manufacture name, date code and USA permanently marked on each shackle

Product Highlights

Drop-forged carbon steel shackle with galvanized finish, tested for impact resistance, tensile strength, hardness, ductility and fatigue.

Product Information

Standard Information

• Brand: CAMPBELL
• Manufacturer Part Number: 5392035
• Country of Origin: United States

Technical Specifications

• UPC: 020418075643
• Foreign Trade Code: 7326908688
• Set: No
• Packaging: Boxed
• B Dimension: 1-3/8 in
• C Dimension: 4-1/2 in
• D Dimension: 2 in
• E Dimension: 3-1/4 in
• F Dimension: 3 in
• Working Load Limit Short Ton: 12 T
• Brand: Campbell
• Model: C-999-G
• MPN: 5392035
• Country of Origin: United States
• Manufacturer: Apex Tool Group
• Brands: CAMPBELL
• Length (in): 8
• Width (in): 7
• Height (in): 2.875
• Series: 999
• Working Load Limit (ton): 12
• Design Factor: 6:1
• Shackle Size: 1-1/4 in
• Eye Outer Size (in): 3
• Opening Size: 2 in
• Inner Width: 3-1/4 in
• Inner Length: 4-1/2 in
• Pin Diameter: 1-3/8 in
• Package Quantity: 1/Each
• Shackle Type: Anchor
• Pin Type: Bolt
• Material: Forged Carbon Steel
• Finish: Galvanized Zinc
• Standards: ASTM A-153
• Maximum Thickness (Inch): 3
• UNSPSC Code: 46151600
• Type: C-999-G
• Locking Type: Pin and Bolt
• Working Load Limit: 12 ton
• Nominal Opening Size: 2 in
• Inner Length [Nom]: 4-1/5 in
• Inner Width [Nom]: 3-1/4 in
• Pin Size [Nom]: 1-1/4 in
• Bail Size: 1-1/4 in
