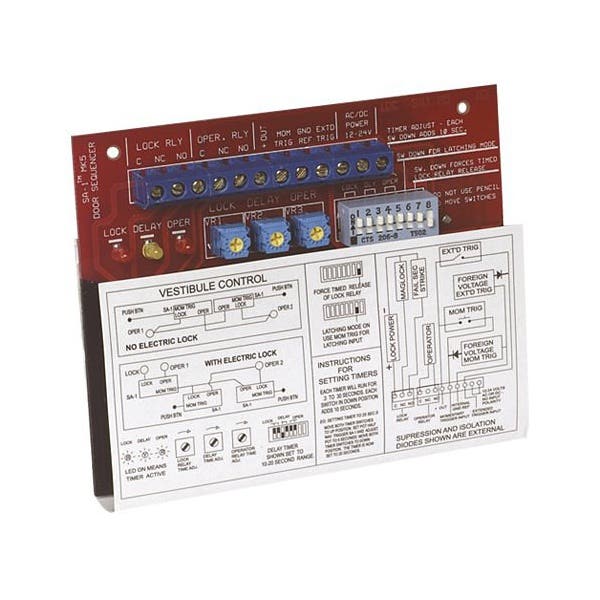

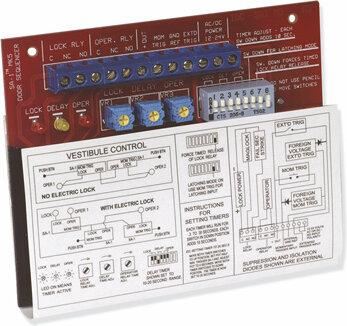

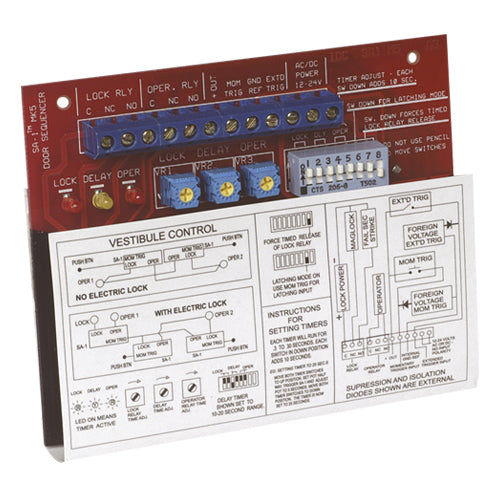

Camden Door Controls CX-SA1 Door Sequencer 12-24V (2 In/Outputs) Replaces CX-1000/76, CX-1000/78, CX-1000/79

Product Description

Camden Door Controls CX-SA1 is a door sequencer that provides momentary or maintained trigger inputs, two relays and three adjustable timers to sequence an operator and electric lock or coordinate two-door vestibules. It accepts two N/O wet or dry contacts, operates on 12-24V AC/DC, and offers two Form C (SPDT) outputs with a latching output option for fire alarm integration.

• Input voltage: 12-24V AC/DC; current draw 18 mA idle, 63 mA operating @ 24 V
• Outputs: 2 x Form C (SPDT) relays; contact rating 2 A @ 24 VDC; electrical life 100,000 cycles
• Three timers with adjustable delays (0.5–30 seconds) and selectable operation modes: one shot, maintained, or latching

Product Highlights

Two-relay switching network door sequencer with adjustable timers, N/O trigger inputs, latching output option for smoke EVAC, compact door or wall mount design.

Product Information

Standard Information

• Brand: CAMDEN DOOR CONTROLS
• Manufacturer Part Number: CX-SA1
• Country of Origin: Canada

Technical Specifications

• Brand: Camden Door Controls
• Manufacturer Part Number: CX-SA1
• Product Name: Door Sequencer
• Product Model: CX-SA1
• Product Type: Switching network door sequencer
• Input Voltage: 12-24V AC/DC
• Current Draw: 18 mA idle, 63 mA operating @ 24 V
• Response Time: 0.3 seconds
• Inputs: 2 x N/O wet or dry contacts
• Operation Modes: One shot, maintained, or latching
• Outputs: 2 x Form C (SPDT)
• Contact Rating: 2 A @ 24 VDC
• Electrical Life: 100,000 cycles @ rated capacity
• Time Delays: Three adjustable timers (each 0.5-30 seconds)
• Dimensions: 3.50" L x 4.02" W x 0.75" H (89 mm x 102 mm x 19 mm)
• Weight: 0.20 lbs
• Mounting Type: Door mount, Wall mount
• Country of Origin: Canada
• Replaces: CX-1000/76, CX-1000/78, CX-1000/79
