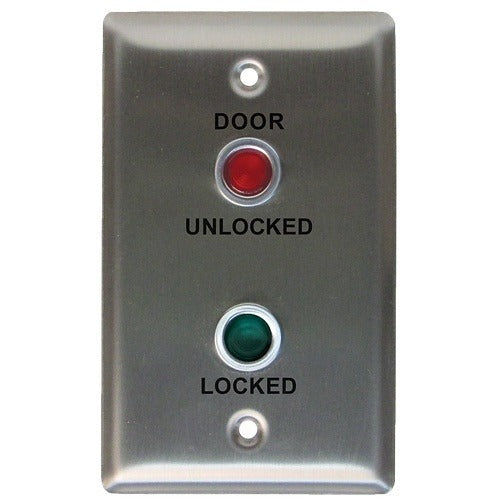

Camden Door Controls CX-LED2/56RG 2 Led Annunciator

Product Description

The Camden Door Controls CX-LED2/56RG is a single-gang, two-LED annunciator panel designed for use with low-voltage access control and door control systems. It provides visual status indication at the switch location, giving installers and end users a clear, at-a-glance confirmation of door or lock state. The unit is configured for DL (door locked) and DU (door unlocked) indication, making it a straightforward addition to any key switch installation where LED feedback is required. Licensed security and low-voltage electricians are the typical trade installing this device.

This annunciator is intended for commercial and institutional access control applications where visual feedback is needed at a key switch station. It mounts in a standard single-gang electrical box and integrates with compatible Camden key switch assemblies. Typical install scenarios include entry vestibules, stairwell doors, secured office entries, and ADA-compliant door operator control stations where occupants or staff need immediate visual confirmation of door status.

Key Features

• Two-LED layout provides individual indication for locked and unlocked door states
• Single-gang form factor fits standard electrical boxes for clean, flush-mount installation
• DL and DU status labeling eliminates ambiguity at the control point
• Designed as a coordinated accessory for Camden key switch and access control product lines
• Compact annunciator format keeps wiring and hardware consolidated at one gang location

Compatibility

Designed as an OEM-style accessory annunciator for use within Camden Door Controls key switch and access control system assemblies. Specific compatible model numbers were not provided in the available product data; consult Camden Door Controls documentation or a distributor for confirmed system pairings.

Installation Notes

Installation is typically performed by a licensed low-voltage technician or electrician in accordance with applicable NEC requirements for access control wiring. De-energize the control circuit and confirm the door operator or lock power supply is off before connecting or disconnecting the annunciator. Mount in a standard single-gang electrical box and verify polarity on LED indicator leads before finalizing connections. Do not apply line-voltage power to low-voltage annunciator terminals.
