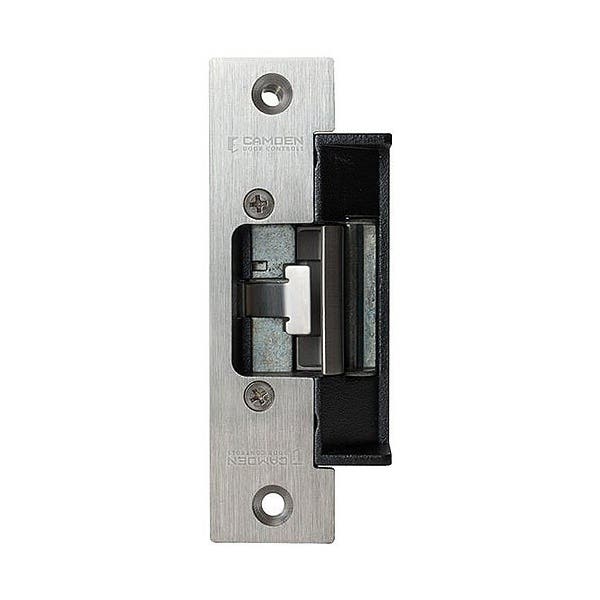

Camden Door Controls CX-ED1079L Low Profile Grade Universal Electric Strike 12/24VAC/DC with Latching Monitoring

Product Description

The Camden Door Controls CX-ED1079L low profile grade universal electric strike offers universal performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and has horizontal faceplate/body adjustment. Designed for 5/8" latch projection, this ANSI grade 1 strike ensures reliable security. It is suitable for cylindrical and mortise locksets.

• Features centerline latch entry for cylindrical and mortise locksets
• Offers selectable 12/24V AC/DC and fail safe/fail secure operation

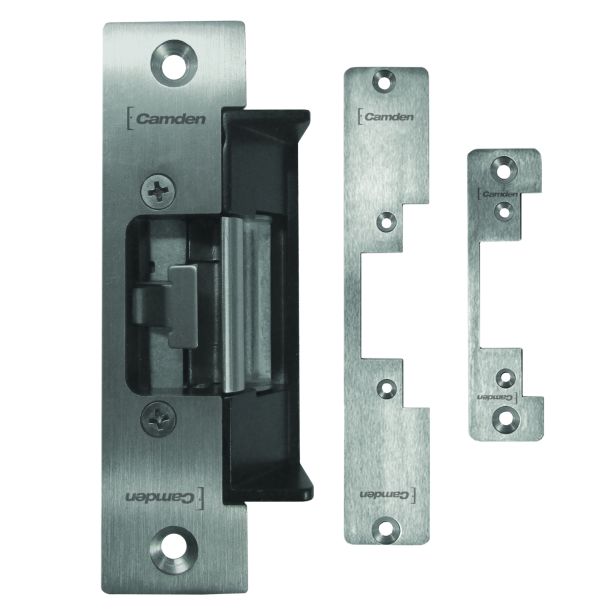

• Includes 3 stainless steel faceplates: ANSI square, hollow metal, and wood door frame

Product Highlights

The CX-ED1079L electric strike provides a versatile solution for access control with its adjustable strike body and easy fit connectors for power and monitoring wires.

Product Information

Standard Information

• Brand: CAMDEN DOOR CONTROLS
• Manufacturer Part Number: CX-ED1079L
• Country of Origin: TW

Technical Specifications

• Brand Name: Camden Door Controls
• Manufacturer Part Number: CX-ED1079L
• Product Name: CX-ED1079L Electric Strike
• Product Type: Electric Strike
• Product Series: CX-ED1079
• ADI Part Number: CM-CXED1079L
• Door Handling: Non Handed
• Input Voltage: 12V AC, 12V DC, 24V AC, 24V DC
• Input Current: 150 mA,260 mA
• Holding Strength: 1500 lb
• Package Contents: CX-ED1079L Electric Strike 3 x Stainless Steel Faceplates(ANSI square, hollow metal and wood door frame)
• Security Configuration: Fail Safe,Fail Secure
• Electric Strike Assembly: Body with Faceplate
• Compatible Door Lock Type: Cylindrical,Mortise
• Features: Latch Monitoring
• Voltage: Dual 12/24V AC/DC
• Current Draw: 260 mA @ 12 VDC 150 mA @ 24 VDC
• Static Strength: 1,500 Lbs.
• Dynamic Strength: 70 Ft-Lbs.
• Endurance: 1,000,000 cycles (Factory Tested) 500,000 cycles (UL Verified)
• Mode: Selectable fail safe fail secure
• Operation: AC - Buzz DC- Silent
• Duty: Continuous
• Latch Monitor: Yes
• Product Model: CX-ED1079L
• Fail Mode: Field Selectable Fail Secure/Fall Safe
• Faceplate Material: Stainless Steel
• Faceplate Options: ANSI Square, Hollow Metal Door, Wood Door
• Handedness: Non-Handed
• Connector Type: Easy Fit Connectors
• Includes: Trim Plate
• SKU: CX-ED1079L
• Height: 4.88"
• Width: 1.25"
