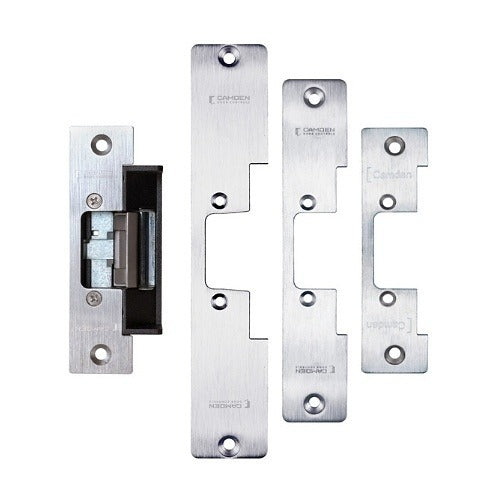

Camden Door Controls CX-ED1079DL Grade 1 Ansi Electric Strike

Product Description

The Camden Door Controls CX-ED1079DL is a Grade 1 ANSI electric strike designed for access control applications in commercial and institutional door hardware installations. Electric strikes replace the fixed strike plate on a door frame, allowing the latch or bolt to be released electronically without requiring the person on the outside to turn a knob or handle. The CX-ED1079DL features a 5/8 inch throw depth, meeting ANSI Grade 1 standards for durability and cycle life. It is typically installed by licensed locksmiths, access control technicians, or low-voltage electricians working on controlled-entry door systems.

This electric strike suits commercial, institutional, and high-traffic residential applications where electronic access control is required. Common installation scenarios include office entry doors, school and government facility doors, multi-tenant building vestibules, and other locations where door release must be triggered remotely by a push-button, keypad, card reader, or intercom system. The ANSI-standard form factor allows it to fit standard door frame prep found in most commercial wood and hollow metal frame applications.

Key Features

• Grade 1 ANSI rating for heavy-duty commercial cycle life and strength requirements
• 5/8 inch throw depth compatible with standard commercial latch bolt hardware
• ANSI-standard dimensions for drop-in replacement into prepared commercial door frames
• Electric strike form factor enables remote or automated door release without mechanical unlocking
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or new-installation electric strike for ANSI-standard commercial door frames requiring Grade 1 rated hardware.

Installation Notes

Electric strikes are installed by licensed locksmiths or access control technicians and are typically governed by local building codes and NFPA 80 requirements for fire-rated openings where applicable. Disconnect or de-energize all low-voltage wiring to the door access system before beginning installation. Verify frame prep dimensions match the strike body before installation, and confirm the latch bolt aligns correctly with the strike pocket to ensure proper latching and release function. Do not install on a fire-rated opening without confirming the strike carries the appropriate listing for that application.
