CAMDEN DOOR CONTROLS CM-5085PTE-R Single Gang 2-3/8 Pneumatic Mushroom Pushbutton

Product Description

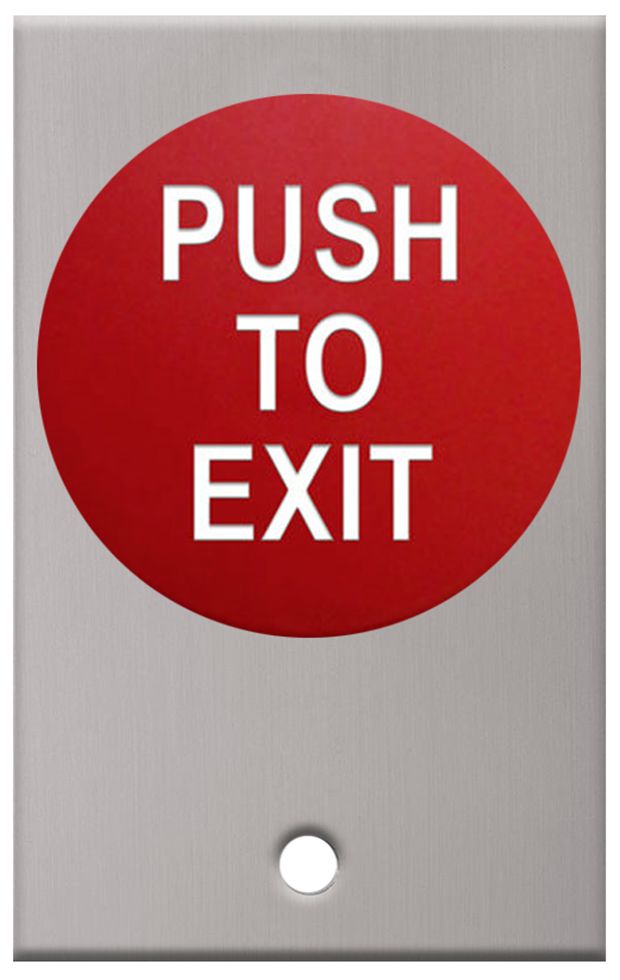

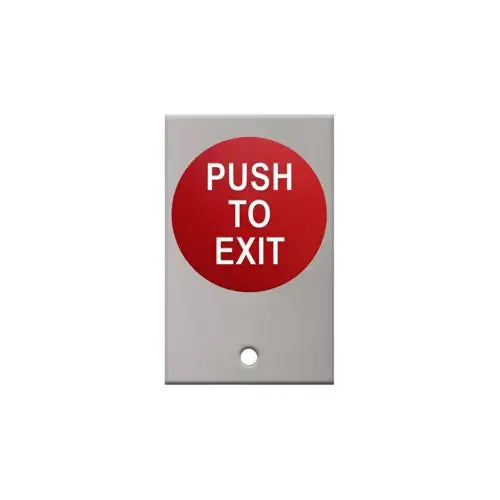

The CAMDEN DOOR CONTROLS CM-5085PTE-R is a mushroom push button designed for high-traffic areas. It has a diameter of 2-3/8 inches and includes a brushed aluminum faceplate.

• 2-3/8 inches large palm button
• Vandal resistant aluminum faceplate
• Designed for indoor and outdoor use

Product Highlights

The CM-5085PTE-R is suitable for controlling overhead doors and electric locks.

Product Information

Standard Information

• Current Rating: 6 A @ 30 VDC
• Temp Range: -13°F to 158°F (-25°C to 75°C)

Technical Specifications

• Switch Life: 100,000 cycles
• Dimensions: 4-1/2 inches x 2-3/4 inches x 1-3/4 inches (114mm x 40mm x 44mm)
• Standard Finish: Brushed Aluminum
• Voltage: 12/24 VDC
• Contact Type: SPDT and DPST models
