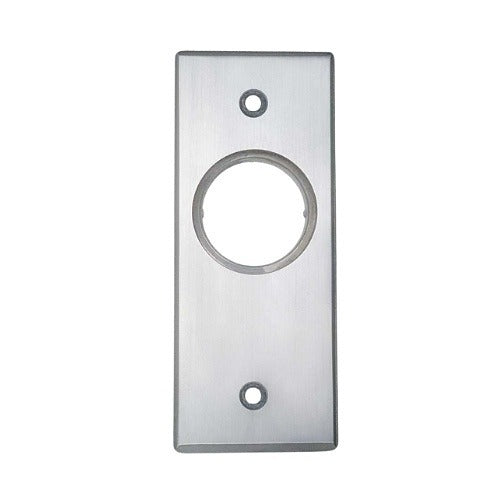

Camden Door Controls CM-2020 Narrow Keyswitch Spdt

Product Description

The Camden Door Controls CM-2020 is a narrow-profile keyswitch featuring a single-pole double-throw (SPDT) momentary contact configuration. Designed for access control and door automation applications, it provides a secure, key-operated means of triggering momentary electrical signals in low-voltage control circuits. The narrow form factor makes it suitable for installations where panel space or door frame width is limited. Electricians and security system technicians are the primary installers. The SPDT contact arrangement allows the switch to route signals to one of two circuit paths depending on switching state, giving integrators flexible wiring options in a single device.

The CM-2020 is suited for commercial and light-industrial access control installations, including automatic door operators, gate controllers, and entry systems. Its momentary action means the contact state returns to its default position as soon as the key is released, making it appropriate for trigger-style inputs rather than maintained-state applications. The narrow body allows mounting in standard electrical boxes or narrow door frame stiles where a full-size keyswitch would not fit.

Key Features

• SPDT momentary contact configuration for flexible circuit routing
• Narrow profile fits tight mounting locations and slim door frame stiles
• Key-operated for secure, controlled access to the switching function
• Momentary action returns contacts to default state upon key release
• Sold as a single unit (EA)

Compatibility

Designed as an OEM-style keyswitch for access control and door automation control circuits requiring a narrow-format SPDT momentary switching device.

Installation Notes

Installation is typically performed by a licensed electrician or credentialed low-voltage access control technician. De-energize the control circuit and verify zero voltage before wiring the switch contacts. Follow applicable NEC requirements for low-voltage control wiring and secure all connections to prevent intermittent contact. Confirm the panel or door frame knockout dimensions are compatible with the narrow body before cutting or drilling.
