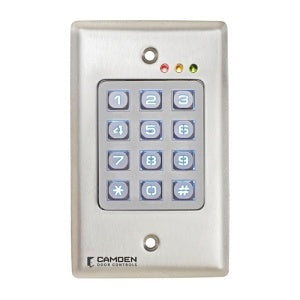

Camden Door Controls CM-120TX Outdoor Metal Backlit Keypad Battery Powered (Door Mount)

Product Description

The Camden Door Controls CM-120TX is a battery-powered outdoor wireless keypad with a vandal-resistant metal backlit keypad and a built-in 915 MHz spread spectrum transmitter. It supports up to 999 fixed or variable-length user codes and two-channel wireless communications for remote access control. The unit provides programmable control of one or two relays, REX and door contact inputs, signal strength meter, battery test gauge, low battery alarm, and auto enrollment. Multi-year operation is achievable using AA alkaline batteries (up to 90,000 operations).

• 915 MHz spread spectrum two-channel wireless; compatible with CM-RX91 (1-relay) and CM-RX92 (2-relay) receivers.
• Supports up to 999 fixed or variable-length user codes; programmable control of relay 1 and/or 2, anti-tailgating and global lock-out.
• Battery powered using AA alkaline cells with multi-year life up to 90,000 operations; includes battery test gauge, low battery alarm, and signal strength meter.

Product Highlights

915 MHz two-channel wireless, supports 999 user codes, AA battery operation up to 90,000 operations, compatible with CM-RX91/CM-RX92, door/flush mount, dimensions 4.50 x 2.80 x 0.70 in

Product Information

Standard Information

• Brand: CAMDEN DOOR CONTROLS
• Manufacturer Part Number: CM-120TX
• Country of Origin: Canada

Technical Specifications

• Brand: Camden Door Controls
• Manufacturer: Camden Door Controls
• MPN: CM-120TX
• Model: CM-120TX
• Product Type: Battery powered wireless keypad
• Product Name: CM-120TX Battery Powered Wireless Keypad
• Wireless Frequency: 915 MHz spread spectrum (915 MHz)
• Wireless Channels: Two-channel
• Users Supported: 999
• Relay Control: Programmable control of relay 1 and/or 2
• Inputs: REX and door contact inputs
• Power: Battery operated
• Battery Type: AA alkaline batteries
• Battery Life: Up to 90,000 operations (estimated operations based on typical AA alkaline performance)
• Indicators: Battery test gauge, low battery alarm, signal strength meter
• Enrollment: Auto enrollment
• Compatibility: Compatible with CM-RX91 (1 relay) and CM-RX92 (2 relay) wireless receivers
• Mount Type: Door mount, Flush mount
• Dimensions: Height 4.50 in; Width 2.80 in; Depth 0.70 in
• Form Factor: Door mount, Flush mount
• Identification Method: PIN/Passcode
• Country of Origin: Canada
• Package Contents: CM-120TX keypad; tamperproof screws and driver
