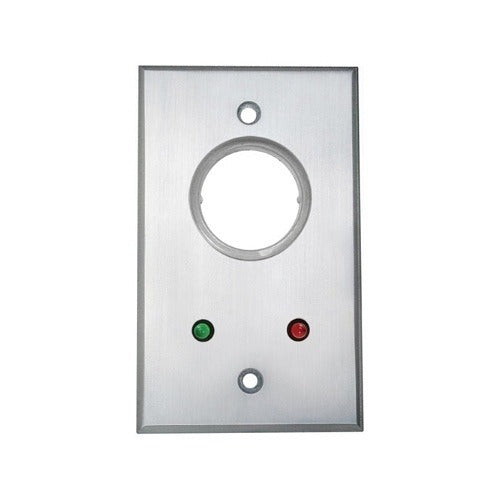

Camden Door Controls CM-1110-7224 Key Switch 24V Led

Product Description

The Camden Door Controls CM-1110-7224 is a maintained-action key switch with 24-volt LED illumination, designed for access control and door management applications. Maintained-action switches hold their position when actuated, making them well-suited for applications that require a sustained signal rather than a momentary pulse. The integrated 24-volt LEDs provide a clear visual indicator of switch status, which is useful in low-light or high-traffic entry environments. This switch is typically installed by electricians, low-voltage technicians, or access control specialists as part of a door control system.

This key switch is used in commercial and institutional access control installations where controlled, key-operated door activation is required. Typical applications include electric door openers, magnetic lock release circuits, and other low-voltage door control systems in offices, healthcare facilities, schools, and secured entry points. The maintained contact configuration holds the circuit state after the key is turned, remaining in position until the operator returns the key.

Key Features

• Maintained-action operation holds circuit state after key actuation
• Integrated 24-volt LED illumination indicates switch status
• Suitable for low-voltage access control and door management circuits
• Single unit per package for straightforward replacement or new installation

Compatibility

Designed as an OEM-style replacement or new-installation component for low-voltage key switch applications in commercial access control and door control systems.

Installation Notes

Installation is typically performed by a licensed electrician or qualified low-voltage access control technician. De-energize the door control circuit and verify the system is fully powered down before wiring the switch. Follow all applicable local electrical codes and the door control manufacturer's wiring guidelines during installation. Confirm LED polarity and operating voltage of the circuit match the 24-volt rating of this switch before final connection.
