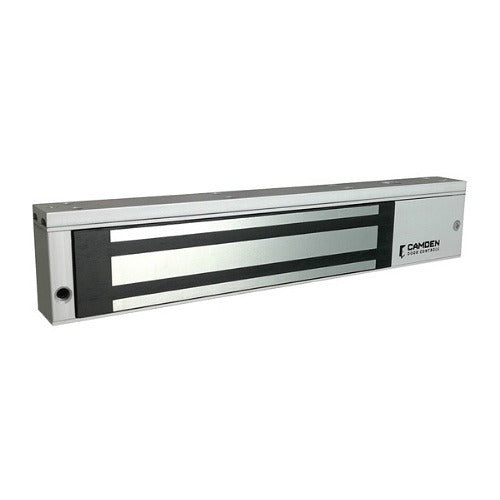

Camden CX-91S-06 Magnetic Door Lock 600 Lb Surface Mount

Product Description

The Camden Door Controls CX-91S-06 is a surface-mount electromagnetic door lock rated for 600 pounds of holding force. It is designed for access control applications where a reliable, fail-safe locking mechanism is required at a door opening. The CX-91S-06 mounts directly to the door frame or header surface without requiring a mortise cut, making it a practical choice for both new installation and retrofit projects. Access control technicians and security integrators are the primary installers. The 600-pound holding force rating makes this unit suitable for interior and perimeter doors in commercial and light industrial environments.

This electromagnetic lock is used in commercial access control systems, including office buildings, schools, healthcare facilities, and secured entry points requiring controlled egress or ingress. It is appropriate for single door openings where a surface-mount profile is acceptable and where the door is managed by an access control panel, keypad, card reader, or similar low-voltage control device. Installation typically involves pairing the lock with an armature plate on the door leaf and wiring to the access control system power supply and controller.

Key Features

• 600-pound holding force for reliable door security in commercial applications
• Surface-mount design eliminates the need for mortise cuts or heavy door modification
• Electromagnetic operation provides fail-safe performance when power is removed
• Compact form factor suited for single door openings in retrofit and new construction
• Sold as an individual unit for straightforward single-door deployments

Compatibility

Designed as an OEM-style surface-mount electromagnetic lock for commercial access control systems. Intended for use with standard access control power supplies and controllers compatible with electromagnetic locking devices.

Installation Notes

Installation should be performed by a licensed access control or low-voltage technician in accordance with applicable local codes and NEC requirements for low-voltage wiring. Disconnect and lock out all power to the access control system before mounting or wiring the lock. Confirm that the door frame or header structure can support the mounting hardware and the operational loads of the lock. Do not apply power to the lock until the armature plate alignment is verified and all wiring connections are secure.
