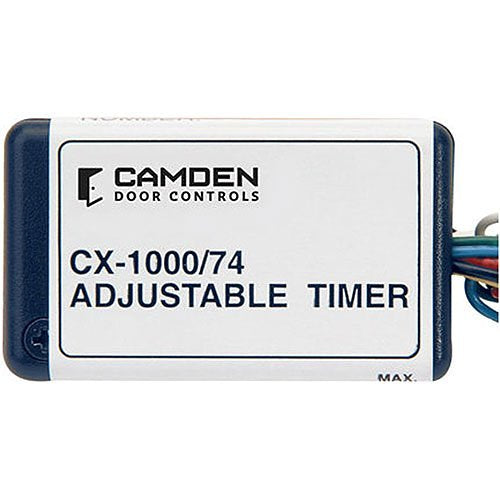

Camden CX-1000/74 MicroMinder Delay on Release Timer (Replaces CX-1000/75)

Product Description

Camden Door Controls CX-1000/74 is a delay on release timer operating on 12 to 24 Volts AC/DC. Users can adjust the delay from one to thirty seconds through a hole in the cover. The Form C relay output has a rating of three amps at twenty-eight VDC. It accepts dry contact inputs, like a wall switch. The compact design provides protection when placed in a metal box or wall cavity, and the circuit board can be removed if space is tight.

• Adjustable delay from one to thirty seconds
• Compact enclosure for mounting flexibility
• Form C relay output rated at three amps

Product Highlights

This timer is suitable for various security applications and electrical controls.

Product Information

Standard Information

• Brand: Camden Door Controls
• Model: CX-1000/74

Technical Specifications

• Input Voltage: 12 to 24 Volts AC/DC
• Adjustable Delay: 1 to 30 seconds
• Relay Output: Form C, 3 amps at 28 VDC
• Material: Plastic
• Dimensions: 2.3 inches (depth), 1.3 inches (width), 0.8 inches (height)
• Country of Origin: Canada
• Application/Usage: Security
