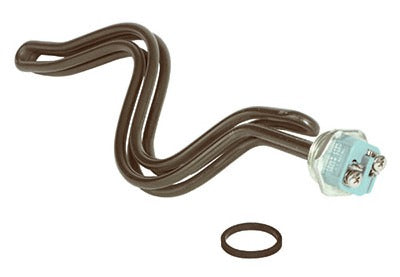

Camco Mfg 2953 Water Heater Ripple Element 4500W 240V

Product Description

The CAMCO MFG 2953 is a screw-in ripple fold back water heater element rated at 4500 watts and 240 volts. Constructed from highest-grade nickel chromium Incoloy, this ultra-low watt density element operates at 50 watts per square inch, which significantly reduces surface temperature and extends service life compared to standard elements. At 14.5 inches in height, it is engineered for residential and light commercial tank-style water heaters and is installed by licensed plumbers or qualified service technicians. The included gasket simplifies replacement and helps ensure a leak-free seal at installation.

This element is suited for tank-style electric water heaters in residential and light commercial applications where water quality is poor, mineral content is high, or lime and sand buildup is a recurring problem. The ripple fold back design increases surface area, allowing the element to heat effectively even within scale deposits that would cause standard elements to fail prematurely. A minimum tank diameter of 15 inches is required. Compatible models include American, A.O. Smith, Bradford White, Craftmaster, General Electric, GS Wood, Kenmore, Lochinvar, Maytag, Mor-Flo, Reliance, Rheem, Richmond, Ruud, Sears, State, and Whirlpool water heaters.

Key Features

• Ultra-low watt density at 50 watts per square inch reduces element surface temperature and extends service life
• Ripple fold back design heats through lime and sand buildup that would burn out standard elements
• Withstands dry firing, adding durability during improper installation or accidental power-on before tank fill
• Highest-grade nickel chromium Incoloy construction for corrosion and scale resistance
• Gasket included for a complete, leak-free screw-in replacement
• UL Listed and backed by a limited lifetime warranty

Compatibility

Fits most models of American, A.O. Smith, Bradford White, Craftmaster, General Electric, GS Wood, Kenmore, Lochinvar, Maytag, Mor-Flo, Reliance, Rheem, Richmond, Ruud, Sears, State, and Whirlpool electric tank water heaters. Minimum tank diameter of 15 inches required.

Installation Notes

Installation should be performed by a licensed plumber or qualified water heater technician. Always disconnect electrical power to the water heater at the breaker panel and shut off the cold water supply before removing the old element. The tank must be fully filled with water before energizing the new element to prevent dry-fire damage. Follow local plumbing and electrical codes, including applicable IPC and NEC requirements, during replacement.
