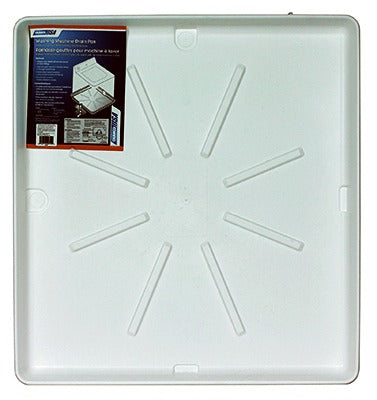

Camco Mfg 20752 Washing Machine Pan 30x32 Inches

Product Description

The CAMCO MFG 20752 is a washing machine overflow pan designed to protect laundry room floors and surrounding structures from water damage caused by washing machine leaks or overflow. Measuring 30 inches by 32 inches outer diameter, the pan is constructed from white polypropylene plastic with a matte finish that resists rust, corrosion, and cracking over time. It ships with a 1-inch to 1-1/2-inch PVC drain fitting and supports both bottom and side outlet configurations. The drain outlet is not pre-cut, giving the installer flexibility to choose the best drainage path for the specific installation. Plumbers and general contractors typically specify this pan in residential laundry installations.

This pan is suited for residential laundry rooms where a standard top-load or front-load washing machine requires secondary containment beneath the unit. The 30-inch by 32-inch footprint accommodates most full-size residential washing machines. The included 1-inch to 1-1/2-inch PVC drain fitting allows the pan to tie into existing drain lines, and the drain size is sized to pass common plumbing codes. It is well-suited to installations on upper floors, finished spaces, or anywhere water intrusion below the appliance is a concern.

Key Features

• 30 x 32 inches outer diameter fits most full-size residential washing machines
• White polypropylene construction resists rust, corrosion, and cracking
• Includes 1-inch to 1-1/2-inch PVC drain fitting for bottom or side outlet
• Drain outlet not pre-cut, allowing field selection of outlet location
• Matte finish, white color suits standard laundry room aesthetics
• Drain sizing meets common plumbing code requirements

Compatibility

Designed as a standard-size overflow pan for residential washing machine installations requiring secondary containment with a plumbed drain connection.

Installation Notes

Installation is typically performed by a licensed plumber or experienced general contractor. Before cutting the drain outlet, verify the intended drain path and select either the bottom or side outlet position accordingly. The drain fitting should be connected to an approved drain line per applicable local plumbing codes. Ensure the pan sits level under the appliance to allow proper drainage toward the outlet.
