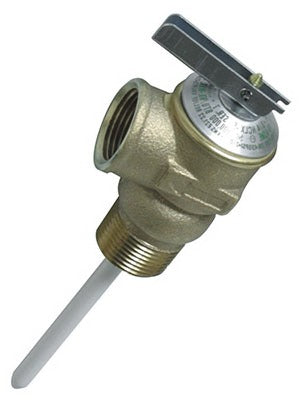

Camco Mfg 10473 Tp Relief Valve 0.75in 105000 Btu/h

Product Description

The CAMCO MFG 10473 is a 3/4-inch temperature and pressure relief valve designed for residential water heater installations. It provides fully automatic protection against dangerous over-temperature and over-pressure conditions, triggering discharge before system limits are exceeded. Rated for water heaters up to 105,000 BTU/h, the valve includes a 4-inch thermostat probe. The male inlet measures 3/4 inches and the female outlet measures 3/4 inches. Temperature relief activates at 210 degrees F. This is a code-critical safety component installed by licensed plumbers on both tank-style storage water heaters and in-line hot water systems.

The 10473 is suited for residential water heater applications requiring automatic TP protection. It can be installed directly in the tank tapping or in the hot water outlet line using the included extension thermostat with test lever. For proper function, the temperature sensing element must be immersed in the water within the top 6 inches of the tank. This makes it applicable to standard vertical tank installations where top-tapping access is available.

Key Features

• Rated for water heaters up to 105,000 BTU/h
• Fully automatic temperature and pressure relief activation
• Includes 4-inch thermostat probe with test lever extension
• Temperature relief set point: 210 degrees F
• 3/4-inch male inlet and 3/4-inch female outlet connections
• Installs in tank tapping or hot water outlet line

Compatibility

Designed as an OEM-style replacement TP relief valve for residential tank-style water heaters rated up to 105,000 BTU/h with a 3/4-inch tapping.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements for temperature and pressure relief valves. Shut off the water supply and power or gas to the water heater before servicing. The temperature sensing element must be positioned within the top 6 inches of the tank water volume to function correctly. Always pipe the discharge outlet to an appropriate drain location — never cap or plug the relief valve outlet.
