Camco 8401366 Pigtail Propane Hose Connector 24 Inches

Product Description

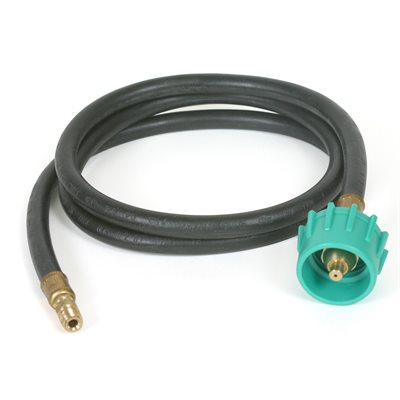

The CAMCO 8401366 is a 24-inch pigtail propane hose connector designed to link a refillable propane cylinder to an RV or trailer propane regulator. Rated at 200,000 BTU/h, this connector handles the flow demands of typical RV propane systems. The fitting configuration is an ACME nut on one end and a 1/4-inch inverted male flare on the other. Safety features include built-in thermal protection against fire exposure and excess flow protection in the event of a broken gas line. Licensed plumbers and RV service technicians are the primary installers of this component.

This hose connector is suited for residential RV and trailer propane setups using standard 20 lb or 30 lb refillable propane cylinders. It connects the cylinder directly to a propane regulator or to a 4-Port Brass Tee for multi-appliance distribution. It can also serve as an auxiliary propane supply line when connected to an already-installed 4-Port Tee, making it a useful addition when expanding an existing propane manifold on a trailer or motorhome.

Key Features

• Rated at 200,000 BTU/h for high-demand RV propane applications
• ACME nut x 1/4-inch inverted male flare fitting configuration
• 24-inch length provides flexible cylinder positioning
• Thermal protection activates in case of fire exposure
• Excess flow protection activates if the gas line is broken or severed
• Compatible with 20 lb and 30 lb refillable propane tanks

Compatibility

Designed for use with 20 lb and 30 lb refillable propane cylinders, RV and trailer propane regulators, and 4-Port Brass Tee fittings. Can function as a primary or auxiliary propane supply connection in RV propane systems.

Installation Notes

Shut off the propane supply at the cylinder valve before disconnecting or connecting any fittings. Apply an approved gas-rated thread sealant or check manufacturer guidance on fitting sealing requirements for flare connections. Inspect all connections for leaks using an approved leak detection solution before returning the system to service. This type of work on propane systems should be performed by a qualified technician familiar with applicable LP gas codes such as NFPA 58.

Technical Specifications

• Length: 24 inches
• Flow Rating: 200,000 BTU/h
• Fitting Type: ACME nut x 1/4-inch inverted male flare
• Thermal Protection: Yes
• Excess Flow Protection: Yes
• Compatible Tank Sizes: 20 lb and 30 lb refillable propane cylinders

Standard Information

• Brand: CAMCO
• Manufacturer Part Number: 8401366
