Camco 34156 Aluminum Water Heater Drain Pan 28 Inch

Product Description

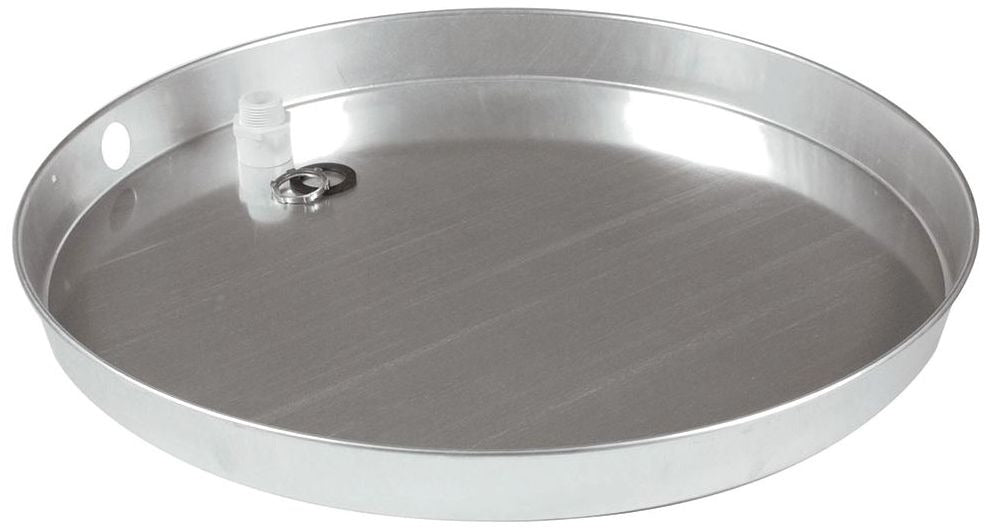

The CAMCO 34156 is a pre-cut, side-opening aluminum drain pan designed to catch water heater leaks and condensation before they cause floor or structural damage. Built with a 28-inch inner diameter and a 2.25-inch depth, this pan fits beneath standard residential water heaters and provides a contained collection area for slow drips or catastrophic tank failure. It ships with both a 1-inch and 1.5-inch PVC drain fitting, giving the installer flexibility to match the existing drain line configuration on the job. Licensed plumbers and HVAC technicians install this pan as part of new water heater setups or replacements.

This drain pan is suited for residential and light commercial applications beneath electric and gas water heaters. It is typically installed in utility closets, mechanical rooms, garages, and any location where a leaking tank could cause water damage to adjacent flooring or finished space below. The pre-cut side opening simplifies installation around existing plumbing and reduces field modification time. The included PVC drain fitting allows direct connection to a floor drain or condensate drain line without additional adapters in most standard configurations.

Key Features

• Pre-cut side opening allows installation around existing supply and drain connections without field cutting
• 28-inch inner diameter accommodates a wide range of standard residential water heater tank sizes
• 2.25-inch depth provides adequate containment volume for drips and minor leaks
• Aluminum construction resists corrosion in wet, humid mechanical room environments
• Includes both 1-inch and 1.5-inch PVC drain fittings for flexible drain line hookup

Compatibility

Designed as an OEM-style replacement or new-installation drain pan for residential electric and gas water heaters with a tank footprint accommodated by a 28-inch inner diameter pan.

Installation Notes

Installation is typically performed by a licensed plumber or HVAC technician as part of a water heater replacement or new installation. Shut off the water supply and power or gas to the water heater before positioning the pan. Local plumbing codes, including the Uniform Plumbing Code and IPC, may require a drain pan with a piped drain in certain locations — verify applicable code requirements before rough-in. Ensure the drain fitting connection is leak-tested and the drain line pitches continuously to the discharge point.

Technical Specifications

• Material: Aluminum
• Inner Diameter: 28 inches
• Depth: 2.25 inches
• Opening Type: Pre-cut side opening
• Included Drain Fittings: 1-inch PVC and 1.5-inch PVC
• Compatible Heater Types: Electric and gas water heaters

Standard Information

• Brand: CAMCO
• Manufacturer Part Number: 34156
