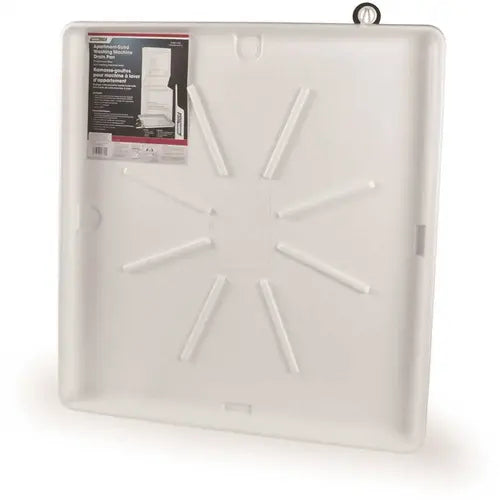

Camco 20762 Washing Machine Drain Pan 28x30 Stackable

Product Description

The CAMCO 20762 is a polypropylene washing machine drain pan designed to protect floors and finished surfaces from water damage caused by washing machine leaks or overflow. Measuring 28 inches x 30 inches on the outside and 25 inches x 27 inches on the inside, this pan is sized for apartment-sized and stackable washer installations. It arrives with a 1-1.5 inch PVC drain fitting included. The polypropylene construction will not rust, corrode, or crack, and the pan carries a matte finish. It is manufactured in the USA and is fully recyclable. Licensed plumbers and contractors install this pan as a standard moisture containment measure beneath laundry equipment.

This drain pan is intended for use under apartment-sized or stackable washing machines in residential and multi-unit residential settings. It is appropriate for installations where floor protection is required by code or landlord specification, such as upper-floor laundry closets, condominiums, and apartment units. The pan is 2.5 inches deep, providing meaningful water retention capacity in a leak event. The bottom or side outlet position is user-selectable — the drain port is not pre-cut, giving the installer flexibility to route the PVC drain line to the most practical location for the specific installation.

Key Features

• Polypropylene construction — will not rust, corrode, or crack under normal service conditions
• Outside dimensions of 28 inches x 30 inches accommodate apartment-sized and stackable washer footprints
• Inside dimensions of 25 inches x 27 inches with 2.5 inch depth for water retention
• 1-1.5 inch PVC drain fitting included — no separate fitting purchase required
• Bottom or side outlet option — drain port is not pre-cut, installer selects location
• Matte finish, recyclable material, manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation drain pan for apartment-sized and stackable residential washing machines with a footprint that fits within the 28 inch x 30 inch outside pan dimensions.

Installation Notes

Installation is typically performed by a licensed plumber or qualified tradesperson. Before positioning the pan, confirm the floor is level and capable of supporting the combined weight of the pan, washer, and a full water load. The drain outlet location — bottom or side — should be determined before cutting, as the port is not pre-cut from the factory. Connect the PVC drain fitting to an appropriate standpipe or floor drain in accordance with local plumbing code requirements.

Technical Specifications

• Outside Dimensions: 28 inches x 30 inches
• Inside Dimensions: 25 inches x 27 inches
• Depth: 2.5 inches
• Drain Fitting Size: 1-1.5 inches PVC
• Material: Polypropylene
• Finish: Matte
• Outlet Options: Bottom or side (not pre-cut)
• Country of Origin: USA

Standard Information

• Brand: CAMCO
• Manufacturer Part Number: 20762
