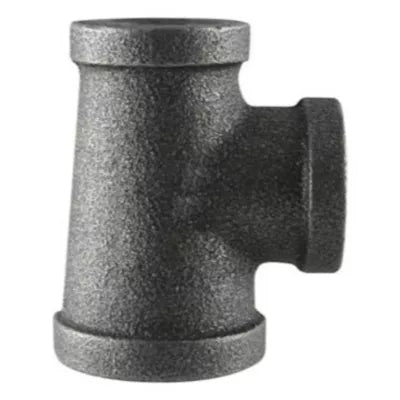

Cambridge Resources fmbrt-343412 Black Reducing Tee

Product Description

The CAMBRIDGE RESOURCES fmbrt-343412 is a black reducing tee fitting designed for gas piping and related distribution systems. The tee measures 3/4 inches by 3/4 inches by 1/2 inches and provides a branch reduction in a run of threaded black iron pipe. It is 100 percent pressure tested and rated at 300 psi at 150 degrees F or 150 psi at 300 degrees F. This fitting is UL and FM listed and manufactured in compliance with ASME standards. Licensed plumbers and pipefitters working on natural gas, LP gas, or air distribution lines are the typical installers of this type of fitting.

This reducing tee is suited for residential and commercial gas piping installations where a main run of 3/4 inch pipe branches off to a 1/2 inch lateral. Common applications include supply line routing to furnaces, boilers, water heaters, dryers, and similar gas-fired equipment. The dual pressure ratings make it appropriate for both low-pressure residential gas service and higher-pressure intermediate distribution systems.

Key Features

• 100 percent pressure tested at the factory before shipment
• Rated at 300 psi at 150 degrees F and 150 psi at 300 degrees F
• UL and FM listed for gas piping applications
• Manufactured in compliance with ASME standards
• Black iron construction suitable for gas service
• Reducing branch allows transition from 3/4 inch run to 1/2 inch lateral in a single fitting

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard threaded black iron pipe systems in 3/4 inch and 1/2 inch nominal pipe sizes.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with the International Fuel Gas Code (IFGC) or applicable local codes. Shut off and bleed the gas supply before disassembling any portion of the pipe system. Apply an approved thread sealant or PTFE tape rated for gas service to all male threads before assembly. After installation, test all joints for leaks using an approved leak detection solution before restoring gas service.

Technical Specifications

• Connection Size: 3/4 inches x 3/4 inches x 1/2 inches
• Maximum Pressure (150 degrees F): 300 psi
• Maximum Pressure (300 degrees F): 150 psi
• Listings: UL Listed, FM Listed
• Standard: ASME Compliant
• Unit of Measure: Each

Standard Information

• Brand: CAMBRIDGE RESOURCES
• Manufacturer Part Number: fmbrt-343412
