Cambridge Resources C-GC-581212MM-24 Flex Gas Connector

Product Description

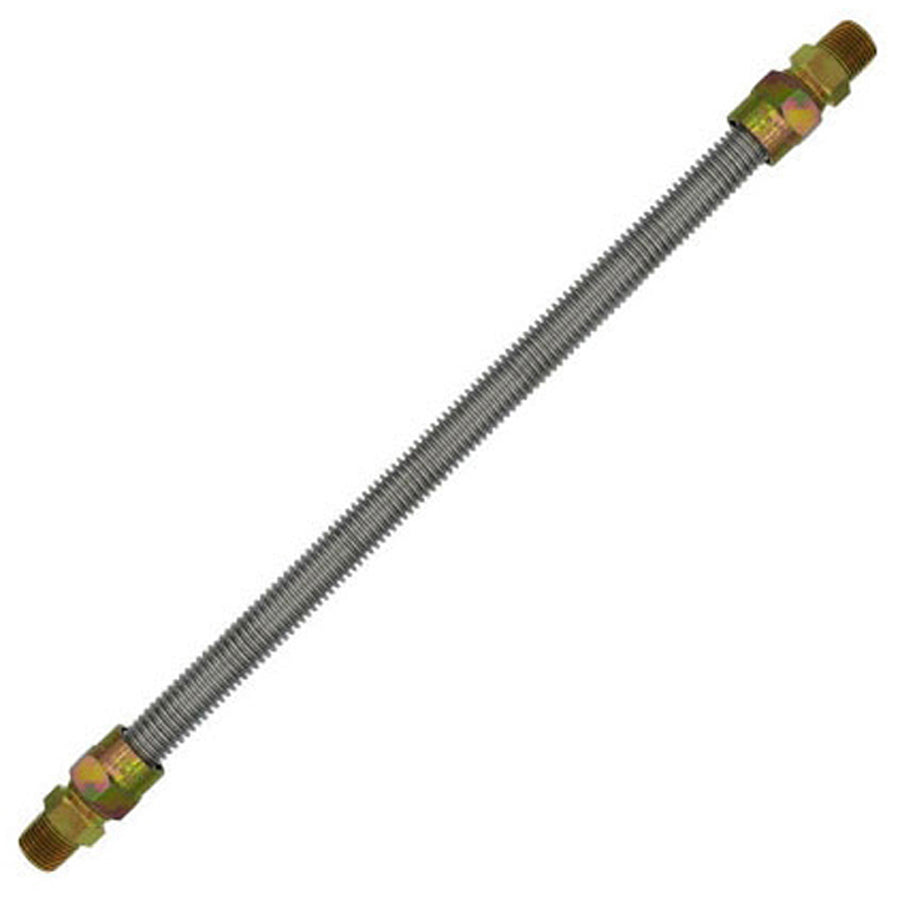

The CAMBRIDGE RESOURCES C-GC-581212MM-24 is a corrugated flexible gas connector designed to supply natural gas from a rigid supply line to a gas-fired appliance. Constructed from 304 stainless steel, the connector delivers corrosion resistance and mechanical flexibility in a single assembly. It measures 24 inches in length with a 1/2-inch inside diameter and a 5/8-inch outside diameter. Both ends terminate in male pipe threads (MPT x MPT) with flared-end fittings for secure metal-to-metal sealing. The connector carries CSA and UL certification to ANSI Z21.24 and CSA/CGA 6.10, confirming it meets recognized safety standards for gas appliance supply lines.

This connector is suited for residential and light commercial installations involving gas ranges, kitchen appliances, and water heaters. The 24-inch length accommodates typical appliance setback distances from a capped stub-out or shutoff valve. Rated for both indoor and outdoor use, it handles standard natural gas service. Plumbers and gas fitters commonly install this connector as part of a final appliance connection during new construction, remodel, or appliance replacement work.

Key Features

• 304 stainless steel construction resists corrosion in both indoor and outdoor environments
• Flared-end fittings provide metal-to-metal sealing at both connection points
• MPT x MPT end connections on both ends for direct threaded hookup
• Certified to UL, ANSI Z21.24, and CSA/CGA 6.10 for natural gas service
• Suitable for gas ranges, kitchen appliances, and water heaters
• Flexible corrugated body allows repositioning of appliances without stressing the supply connection

Compatibility

Designed as a CSA- and UL-certified replacement or new-installation gas connector for residential gas ranges, kitchen appliances, and water heaters using natural gas supply lines with 1/2-inch male threaded fittings.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the nearest upstream valve before disconnecting or connecting any gas piping. Apply an approved pipe thread sealant rated for gas service to all male threaded connections before assembly. Do not over-bend the flexible connector or allow it to contact sharp edges, and never use the connector as a substitute for rigid gas piping in concealed or inaccessible locations.

Technical Specifications

• Length: 24 inches
• Inside Diameter: 1/2 inch
• Outside Diameter: 5/8 inch
• End Connection: Male Threaded x Male Threaded (MPT x MPT)
• Tubing Material: 304 Stainless Steel
• Application: Gas Appliance, Water Heater
• Applicable Standards: UL, ANSI Z21.24, CSA/CGA 6.10

Standard Information

• Brand: CAMBRIDGE RESOURCES
• Manufacturer Part Number: C-GC-581212MM-24
