Cambridge Resources C-GC-581212MM-18 Flex Gas Connector

Product Description

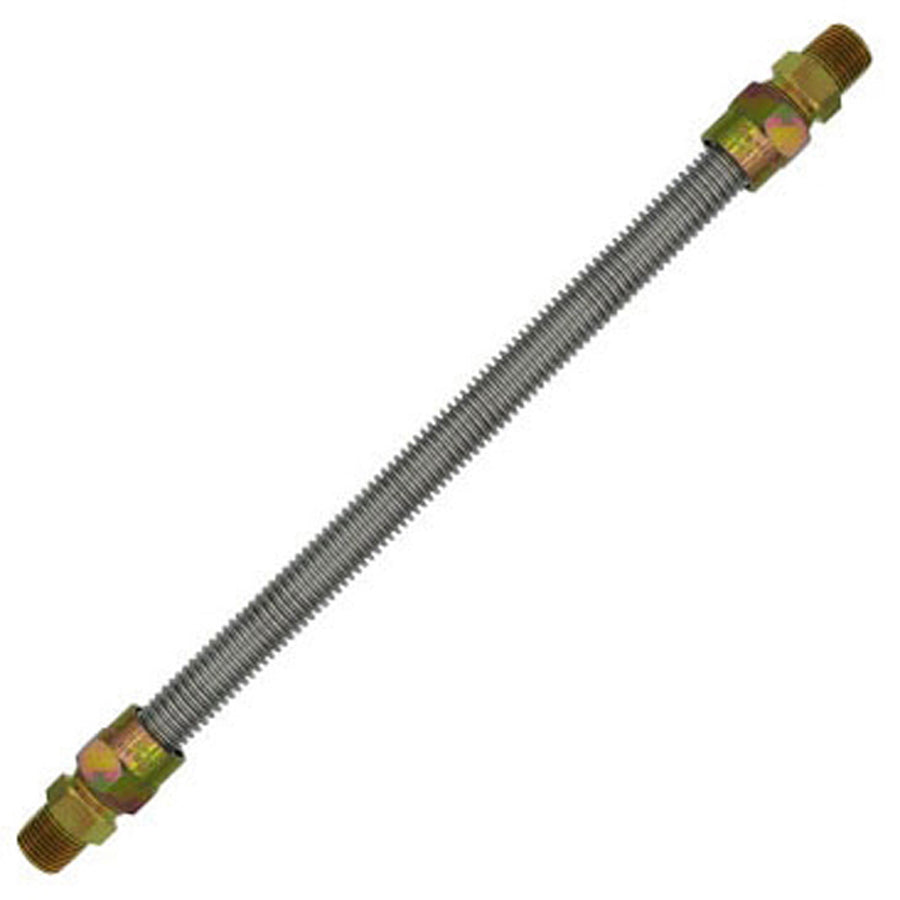

The CAMBRIDGE RESOURCES C-GC-581212MM-18 is a flexible stainless steel gas connector designed for connecting gas-fired appliances to residential supply lines. Constructed from corrosion-resistant 304 stainless steel, it measures 18 inches in length with a 1/2-inch inside diameter and 5/8-inch outside diameter. Both ends terminate in male pipe thread (MPT x MPT) fittings with flared-end construction for secure metal-to-metal sealing. Certified to UL, ANSI Z21.24, and CSA/CGA 6.10 standards, this connector is rated for use with natural gas and is suitable for both indoor and outdoor installation. Licensed plumbers and HVAC technicians are the typical installers.

This connector is appropriate for residential and light commercial applications where a flexible gas supply line is required. Common uses include kitchen ranges, gas dryers, and water heaters. The 18-inch length provides working slack for appliance positioning and service pull-out. The MPT x MPT configuration pairs with standard gas shutoff valves and appliance inlets. Its flexibility and corrosion resistance make it well suited for both new installations and replacement service work in kitchens, utility rooms, and mechanical spaces.

Key Features

• 304 stainless steel construction resists corrosion in indoor and outdoor environments
• Flared-end fittings provide secure metal-to-metal seals at both connections
• Male pipe thread on both ends for compatibility with standard gas valves and appliance inlets
• Certified to UL, ANSI Z21.24, and CSA/CGA 6.10 for natural gas service
• 18-inch length allows flexibility for appliance positioning and pull-out clearance
• Rated for gas ranges, water heaters, and similar gas-fired appliances

Compatibility

Suitable for use with natural gas kitchen appliances, gas ranges, and hot water heaters requiring a 1/2-inch MPT x MPT flexible connector. Certified for use in both indoor and outdoor installations per ANSI Z21.24 and CSA/CGA 6.10.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas technician in accordance with local codes and the appliance manufacturer instructions. Shut off the gas supply at the main valve or appliance shutoff before disconnecting or connecting any gas line. Apply an approved gas-rated thread sealant or tape to the MPT threads before making connections and verify all joints with an approved leak-detection solution before restoring gas flow. Do not over-bend or kink the flexible connector during installation.

Technical Specifications

• Material: 304 Stainless Steel
• Length: 18 inches
• Inside Diameter: 1/2 inch
• Outside Diameter: 5/8 inch
• End Connection: Male Threaded x Male Threaded (MPT x MPT)
• Application Type: Gas Appliance, Water Heater
• Certifications: UL, ANSI Z21.24, CSA/CGA 6.10
• Gas Type: Natural Gas

Standard Information

• Brand: CAMBRIDGE RESOURCES
• Manufacturer Part Number: C-GC-581212MM-18
