Cambridge-lee Industries 7178008089802 Gas Stop Valve

Product Description

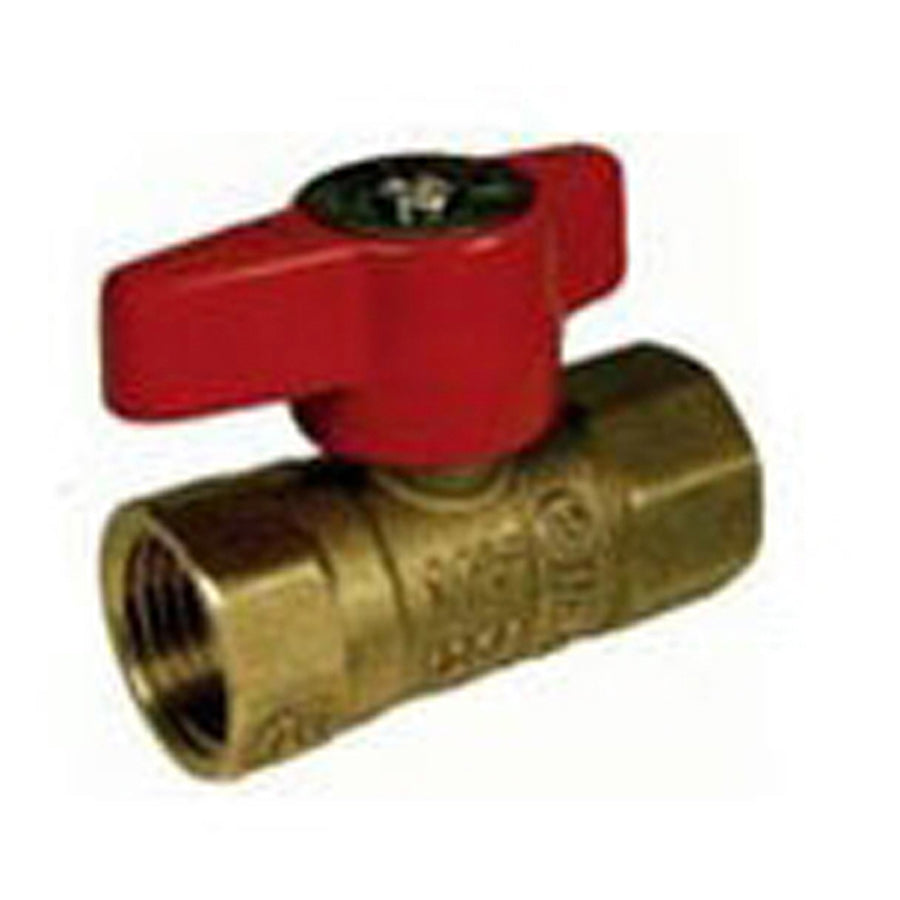

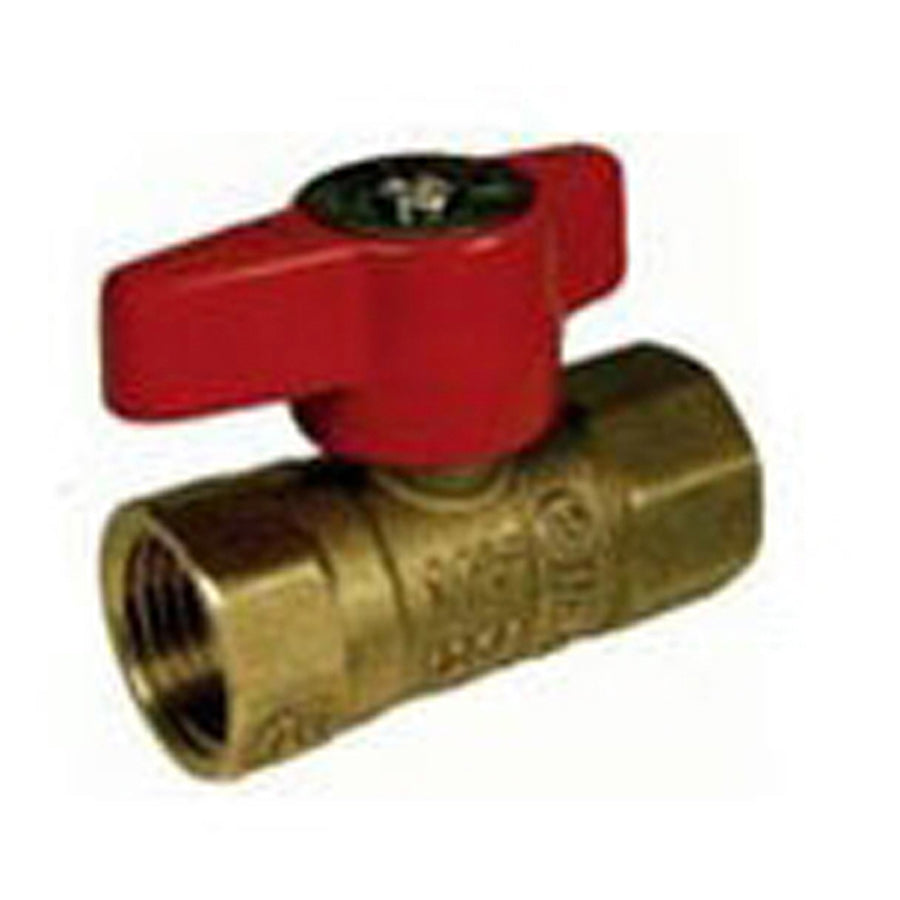

The CAMBRIDGE-LEE INDUSTRIES 7178008089802 is a 2-piece lever-handle gas stop valve designed for shutoff service in residential and light commercial gas piping systems. The valve body is forged brass with female threaded connections on both ends, rated at 175 PSI WOG. The lever handle allows for quick quarter-turn shutoff, giving installers and service technicians a clear visual indication of open or closed position. This valve is built to meet UL, CSA, FM, and Federal Specification WW-V-35 TYPE 2, CLASS A, STYLE 1, making it suitable for code-compliant natural gas and LP gas installations.

This valve is used as an inline shutoff on gas supply lines in residential and light commercial applications. Typical install scenarios include appliance isolation on furnaces, water heaters, dryers, ranges, and other gas-fired equipment. The 1/2-inch FPT x FPT configuration threads directly onto standard half-inch gas piping. Licensed plumbers and gas fitters are the primary installers for this type of valve.

Key Features

• Forged brass body for durability in gas service applications
• 175 PSI WOG pressure rating for residential and light commercial gas lines
• 1/2 inch FPT x FPT end connections for direct thread-on installation
• Lever handle provides quarter-turn operation with clear open/closed indication
• Certified to UL, CSA, FM, and Federal Specification WW-V-35 TYPE 2, CLASS A, STYLE 1
• 2-piece construction designed for gas shutoff service

Compatibility

Designed as an OEM-style replacement or new-installation gas stop valve for 1/2-inch female-threaded gas piping in residential and light commercial systems.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and IFGC requirements. Shut off the main gas supply and verify zero pressure at the line before beginning work. Apply an approved pipe thread sealant or tape rated for gas service to all threaded connections. Do not over-tighten threaded connections, as this can damage valve threads and compromise the seal.

Technical Specifications

• Type: 2-Piece
• Actuation Type: Lever Handle
• Application: Gas
• Body Material: Forged Brass
• End Connection: Female Threaded x Female Threaded (FPT x FPT)
• Nominal Size: 1/2 inch x 1/2 inch
• Pressure Rating: 175 PSI WOG
• Applicable Standards: UL, CSA, FM, Federal Specification WW-V-35 TYPE 2, CLASS A, STYLE 1

Standard Information

• Brand: CAMBRIDGE-LEE INDUSTRIES
• Manufacturer Part Number: 7178008089802
