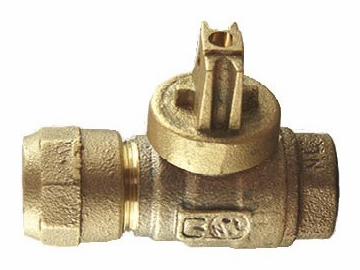

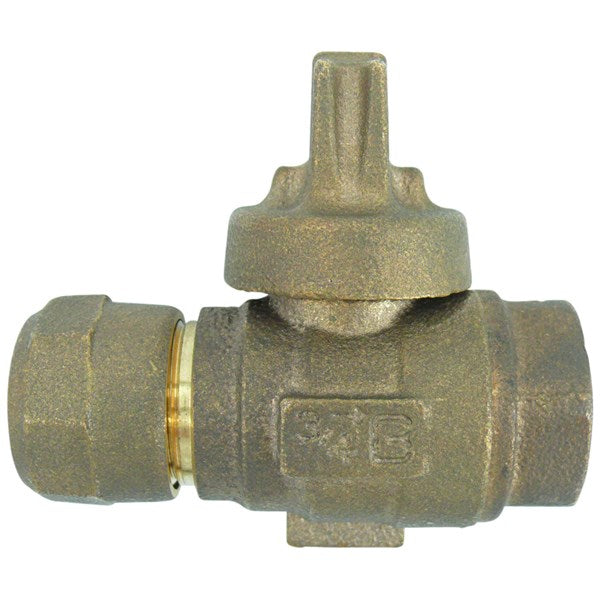

Cambridge Brass 202NL-H3F3 N/L F/PORT B/V CURB 3/4 CB x 3/4 FIP

Product Description

The Cambridge Brass 202NL-H3F3 N/L F/PORT B/V CURB features a three-fourth inch CB x three-fourth inch FIP connection. This curb stop is designed for water supply systems, featuring a straight ball valve configuration. It is constructed from NL Brass and made for commercial use. This valve does not include lockwing or tracer wire capabilities.

• Commercial Category: Curb Stop
• Connection Type: CB Comp x FPT
• Canadian Made

Product Highlights

The valve offers effective control of water flow for plumbing applications, suitable for installation in various commercial settings.

Product Information

Standard Information

• Commercial Category: Curb Stop
• Connection Type: CB Comp x FPT

Technical Specifications

• Commercial Style: CB Compression-CTS x FIP
• Commercial Sub Category: Straight Ball Valve
• Inlet: Compression
• Out Size: 3/4
• Outlet: FNPT
• Series: 202NL
• Part Type: Curb Stop
• Inlet Size: 3/4
• Outlet Size: 3/4
• Insert Stiff Req: Yes
• Ball vs Plug: Ball
• Material: NL Brass
• Lockwing: No
• Tracer Wire: No
• Connection Size: 3/4 x 3/4
