Product Description

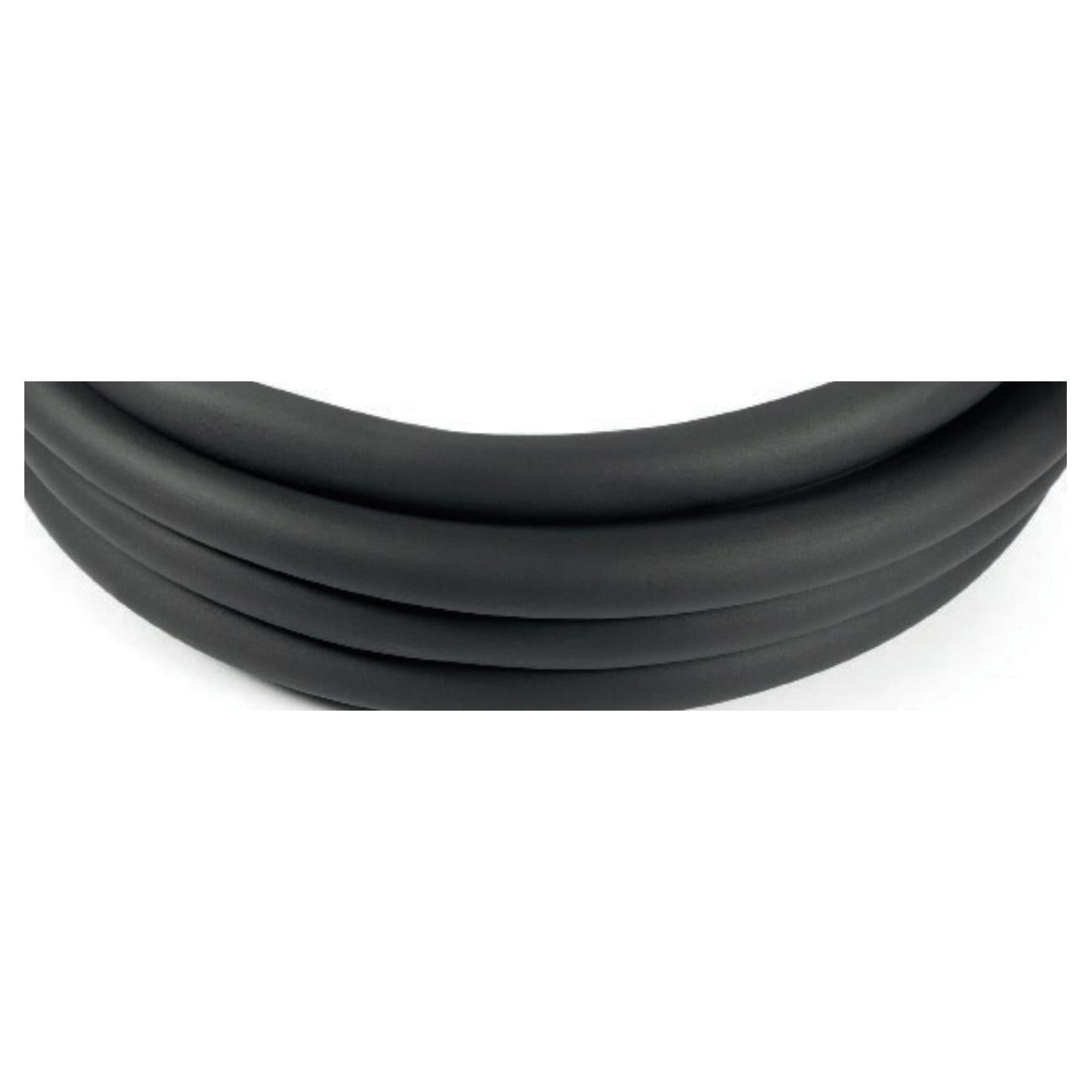

The Cambridge 223460 is a standard lineset designed for connecting split system air conditioners and heat pumps. This copper tubing lineset measures 50 ft in length, featuring a 3/8 inch liquid line and a 7/8 inch suction line. It includes 1/2 inch thick elastomeric thermal insulation, suitable for temperatures ranging from -40 to 200 degrees Fahrenheit. The lineset adheres to material standards such as ASTM B280/B1003/E84/E96/G90.

• Line sets and Mini-Splits are produced in accordance with ASTM B280 & ASTM B1003
• Flame Spread Index is rated at 25/50 Plenum rated to ASTM E84, UL723, NFPA 255
• Thermally effective from -40 degrees Fahrenheit to 200 degrees Fahrenheit

Product Highlights

This lineset features copper construction with 1/2 inch elastomeric thermal insulation, designed for HVAC system connections.

Product Information

Standard Information

• Brand: CAMBRIDGE
• Manufacturer Part Number: 223460
• Country of Origin: USA

Technical Specifications

• Insulation Type: Elastomeric Thermal
• Insulation Thickness: 1/2 in
• Length: 50 ft
• Liquid Line Size: 3/8 in
• Material Standard: ASTM B280/B1003/E84/E96/G90
• Material: Copper
• Suction Line Size: 7/8 in
• Temperature Rating: -40 to 200 deg F
• Approvals: UL Recognized
• Connection Type: C x C
