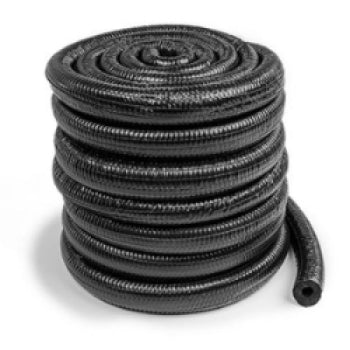

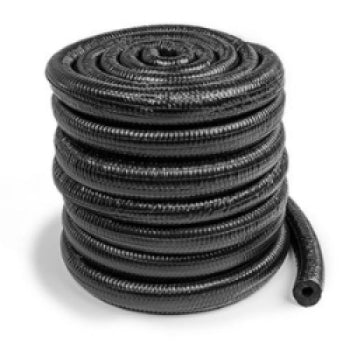

Cambridge 223456 Ez Pull Insulation Lineset 3/8x7/8 in 30ft

Product Description

The CAMBRIDGE 223456 is a pre-insulated refrigerant lineset designed for split-system air conditioning and heat pump installations. The EZ Pull construction simplifies routing through walls, ceilings, and chases, reducing labor time on residential and light commercial jobs. The lineset ships in a 30-foot length with a 3/8-inch suction line and a 7/8-inch liquid line, both wrapped in armored insulation to protect refrigerant lines from mechanical damage and thermal gain. HVAC technicians use this style of lineset as a complete, ready-to-install solution when connecting indoor and outdoor units.

This lineset fits typical split-system installations where a pre-insulated, armored line assembly is preferred over field-fabricating individual copper lines with separate insulation. The 30-foot run accommodates standard residential installations where the condensing unit is positioned near the structure. The EZ Pull design allows a single technician to feed the assembly through confined spaces without the lines binding or kinking during installation.

Key Features

• EZ Pull construction eases routing through tight spaces and reduces installation time
• 3/8-inch and 7/8-inch line sizes suit common residential split-system configurations
• 30-foot length covers typical residential condensing unit setbacks
• Armored insulation jacket protects lines from physical damage and thermal loss
• Ships as a complete assembly — no separate insulation wrapping required on the job

Compatibility

Designed as an OEM-style replacement or new-installation lineset for residential and light commercial split-system air conditioners and heat pumps requiring 3/8-inch x 7/8-inch pre-insulated line assemblies.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with refrigerant line brazing, evacuation, and system commissioning procedures. Power down and lock out the indoor and outdoor units before connecting any refrigerant lines. Avoid kinking the copper lines during routing; support the lineset at intervals consistent with local mechanical codes. Leak-test all connections before charging the system with refrigerant.

Technical Specifications

• Line Size: 3/8 inches x 7/8 inches
• Length: 30 feet
• UPC: 75865914678

Standard Information

• Brand: CAMBRIDGE
• Manufacturer Part Number: 223456
